Radio Receiver: Installation

INSTALL RADIO RECEIVER
1. Install the No. 2 radio bracket with the 3 bolts.

  Fig 1: Identifying No. 2 Radio Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 radio bracket with the 3 bolts.

  Fig 2: Identifying No. 1 Radio Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors.
4. Engage the 2 claws and the 2 clips.
5. Install the radio receiver with bracket with the 4 bolts.
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See INSTALLATION )
INSTALL CONSOLE PANEL UPPER FRONT (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal (See INITIALIZATION ).

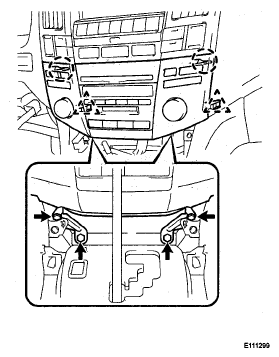

Fig 3: Identifying Claws & Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
