Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Air Cooled Oil Cooler >> Components

Air Cooled Oil Cooler: Components

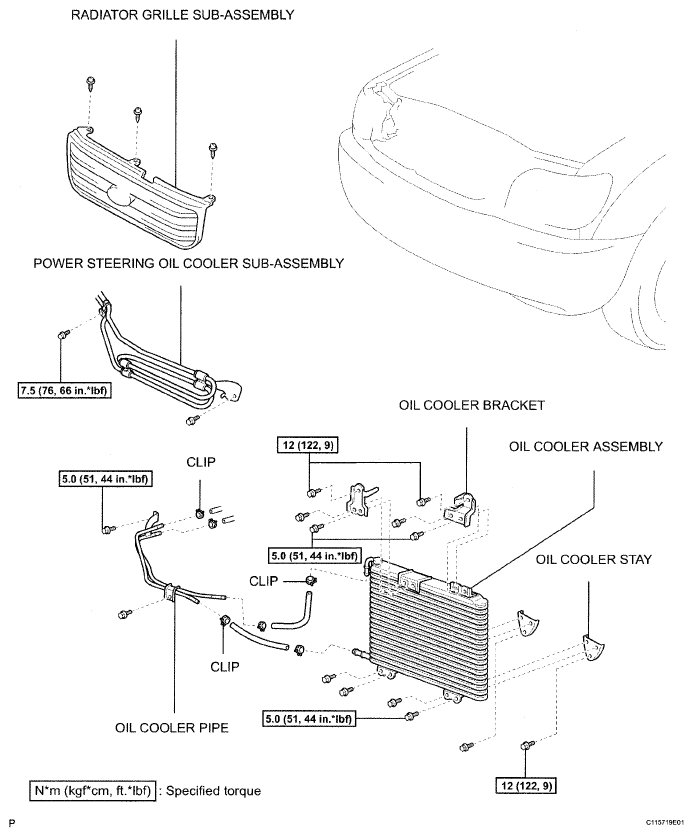

Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications

G05282779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
