Rear Seat Outer Belt Assembly: Components

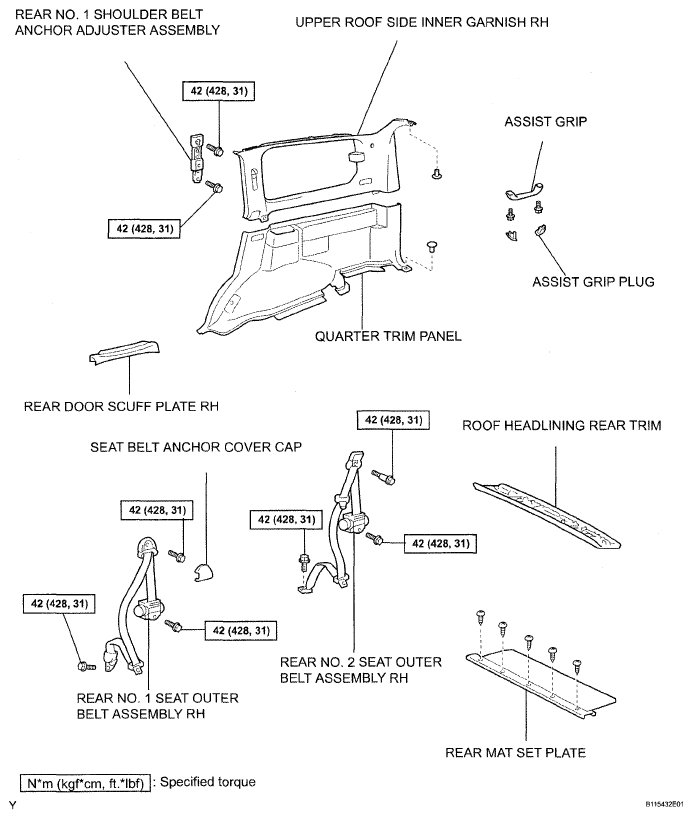

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications

G05283971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
