Air Outlet Control Servo Motor: Inspection

  1. INSPECT AIR OUTLET SERVO MOTOR
    1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7.
    2. Connect the negative (-) lead from the battery to each terminal and check that the shaft rotates at each position, as shown in the illustration.

      OK

      TERMINALS REFERENCE

      Connected terminal Position
      5 DEF.
      4 FOOT/DEF.
      3 FOOT
      2 B/L
      1 FACE

      If operation is not as specified, replace the servo motor.

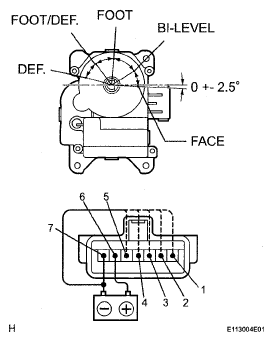

      Fig 1: Inspecting Air Outlet Servo Motor
      G05284280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
