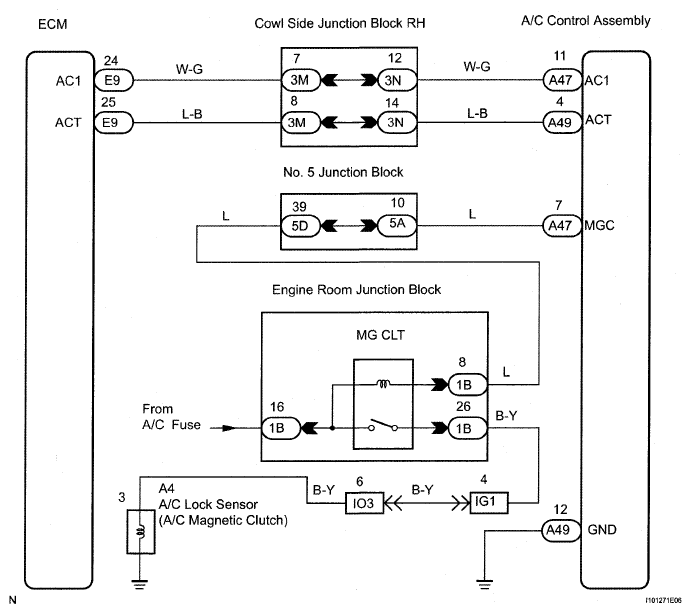

Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning >> Air Conditioning System >> Compressor Circuit >> Wiring Diagram
