Fuel Pressure Regulator: Components

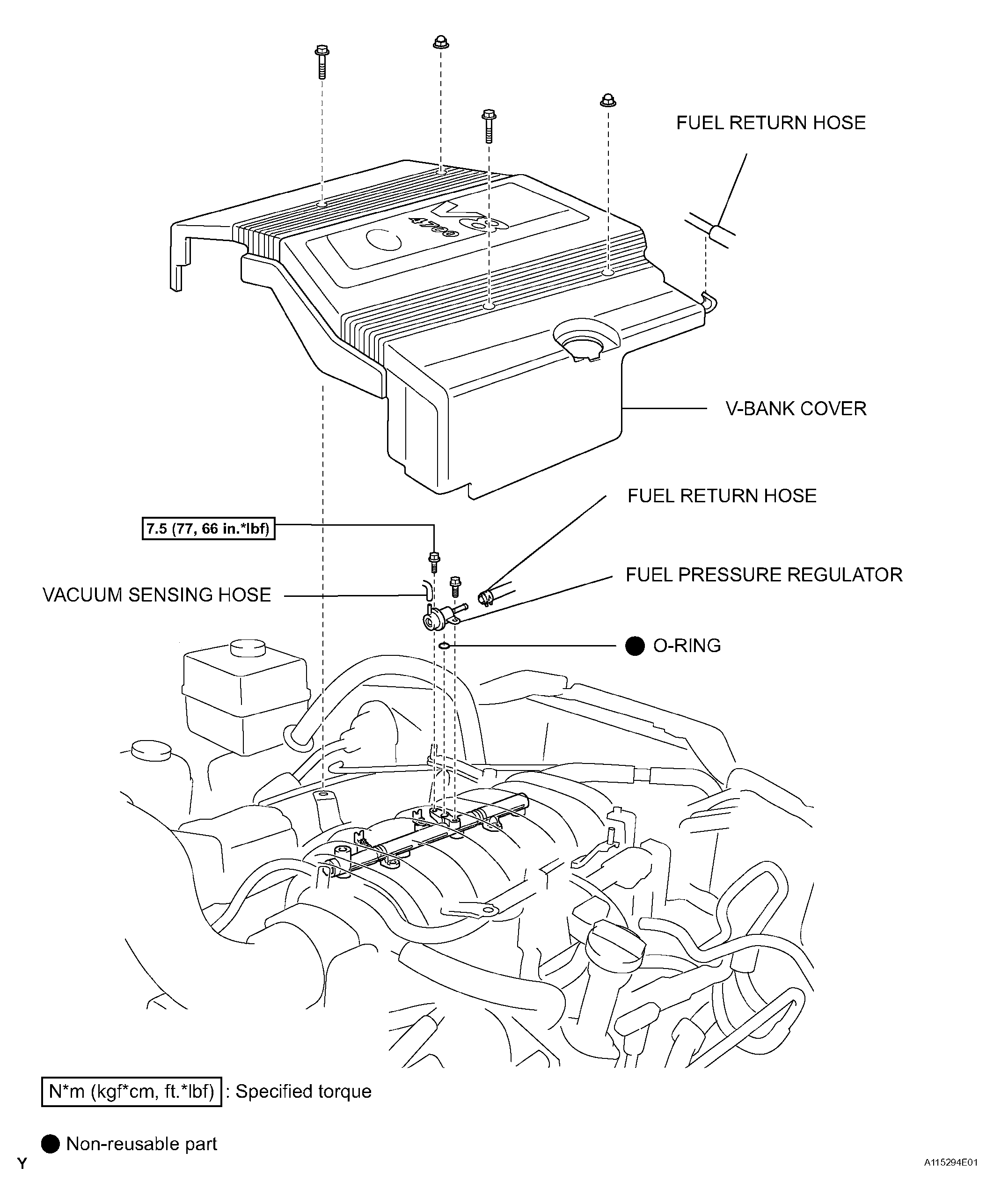

Fig 1: Replacement Components Fuel Pressure Regulator With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
