Charging (2UZ-FE): Generator: Installation

INSTALL GENERATOR ASSEMBLY
1. Install the generator with the bolt and 2 nuts.
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf) for bolt

  39 N*m (400 kgf*cm, 29 ft.*lbf) for nut

  (A)

  16 N*m (163 kgf*cm, 12 ft.*lbf) for nut

  (B)
2. Connect the generator connector.
3. Connect the generator wire with the nut and terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 86 in.*lbf)
4. Install the generator wire clamp to the cord clip on the generator.

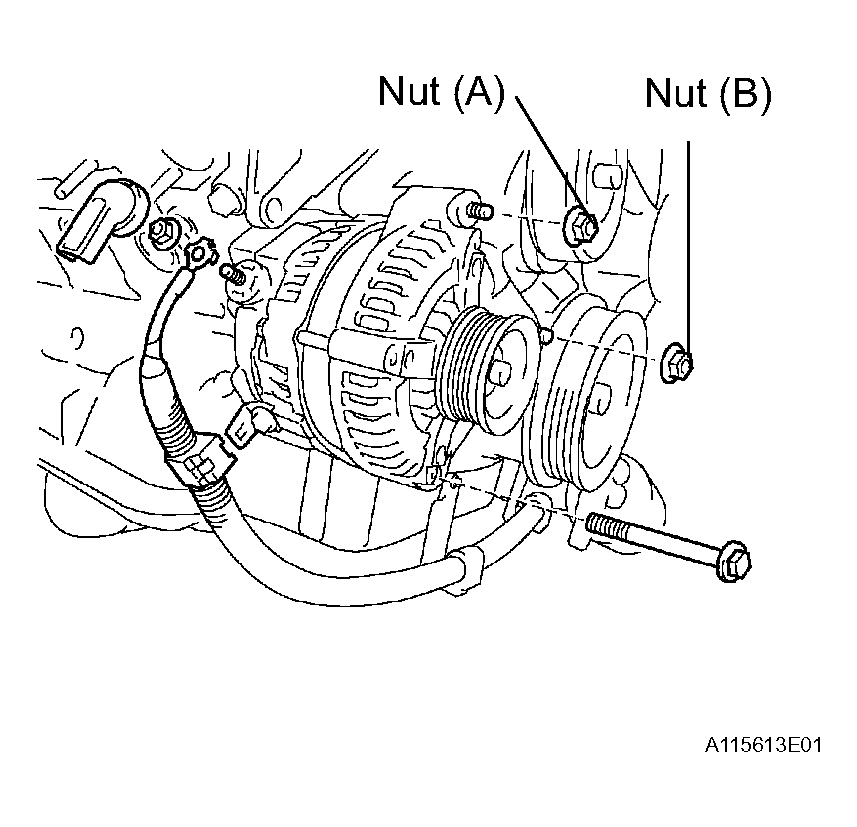

Fig 1: Identifying Generator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VANE PUMP ASSEMBLY (See INSTALLATION )
INSTALL FLUID COUPLING ASSEMBLY
1. Put the fan with fluid coupling and fan shroud into the engine room at the same time.
2. Install the fan shroud with the 3 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
3. Install the fan with fluid coupling with the 4 nuts.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
INSTALL DRIVE BELT (See INSTALLATION )
CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting the cable from the negative (-) battery terminal.
