Charging (2UZ-FE): Generator: Disassembly

REMOVE GENERATOR REAR END COVER
1. Remove the 3 nuts and end cover.

  Fig 1: Identifying Generator Rear End Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

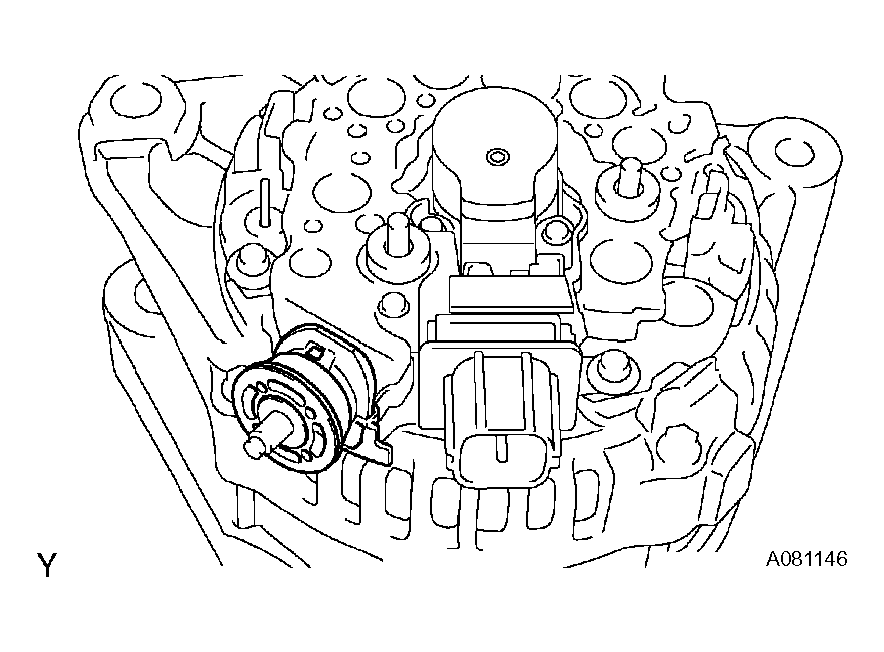

2. Remove the terminal insulator.
Fig 2: Identifying Terminal Insulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

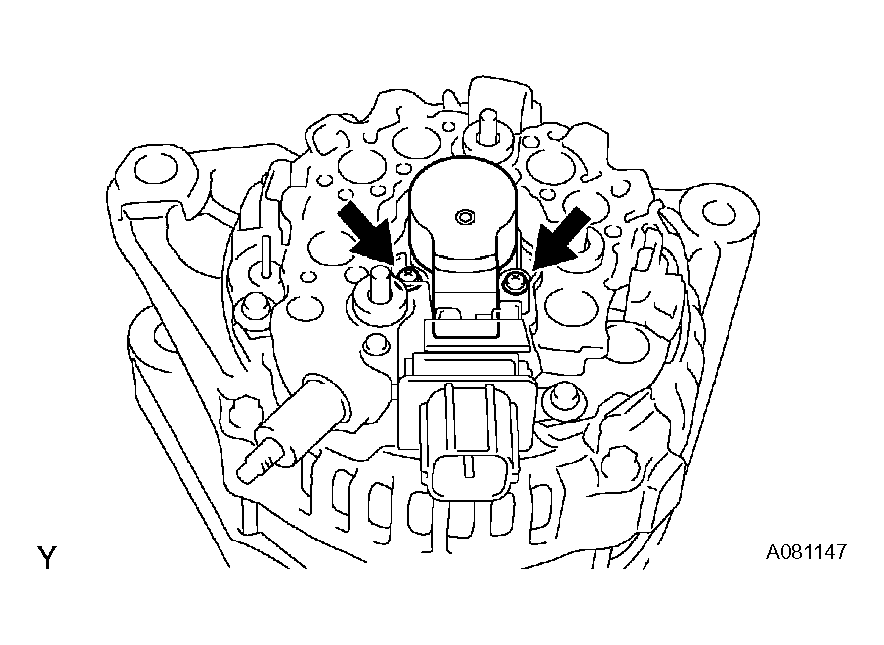

1. Remove the 2 screws and brush holder.
Fig 3: Identifying Screws And Brush Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR PULLEY

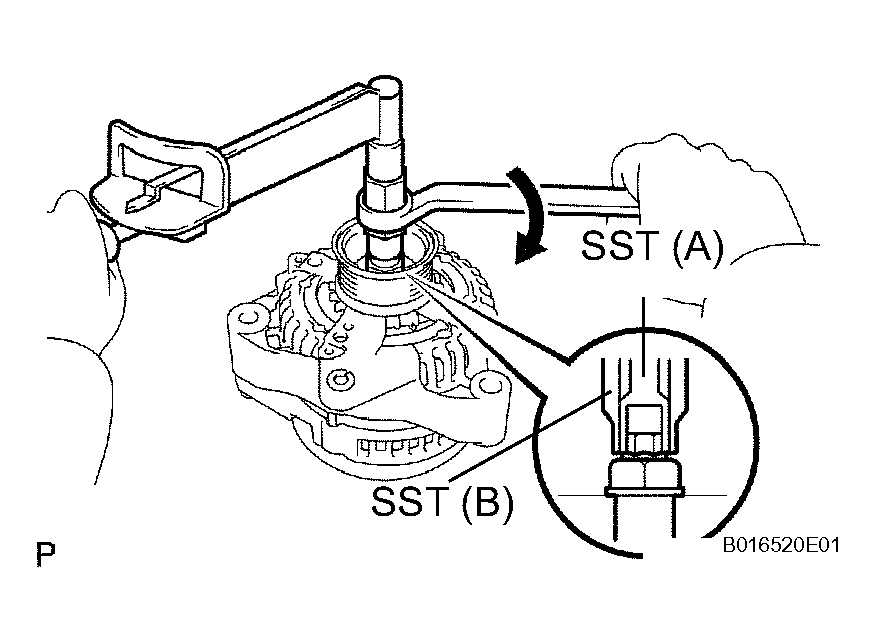

1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  SST 09820-63011

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)
2. Check that SST (A) is secured to the rotor shaft.

  Fig 4: Tightening SST (B) Clockwise To Specified Torque
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Mount SST (C) in a vise.
4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).

  Fig 5: Attaching Pulley Nut To SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

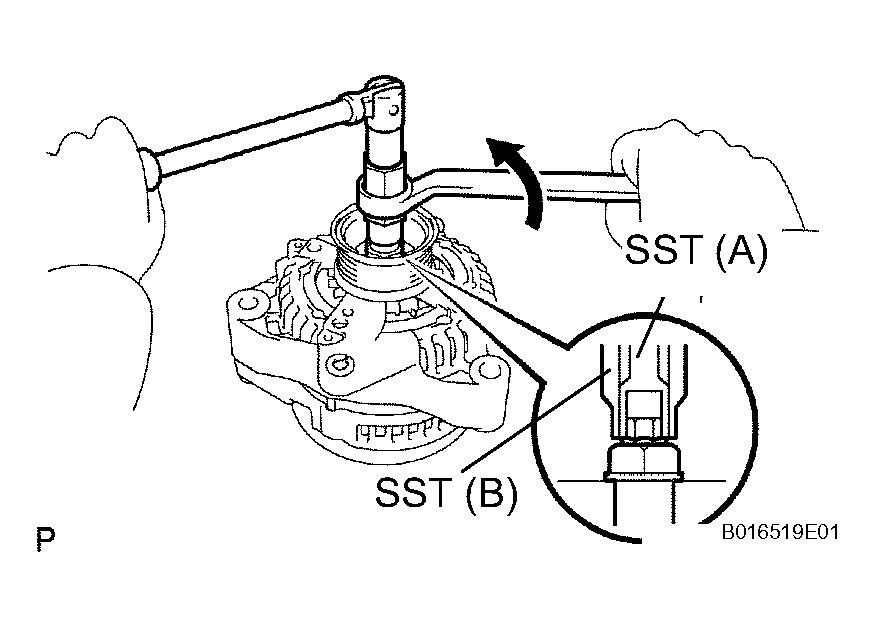

5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
  NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one half of a turn.
6. Remove the generator from SST (C).

  Fig 6: Identifying Generator From SST (C)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn SST (B), and remove SST (A and B).
8. Remove the pulley nut and pulley.

  Fig 7: Identifying Pulley Nut And Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR COIL ASSEMBLY

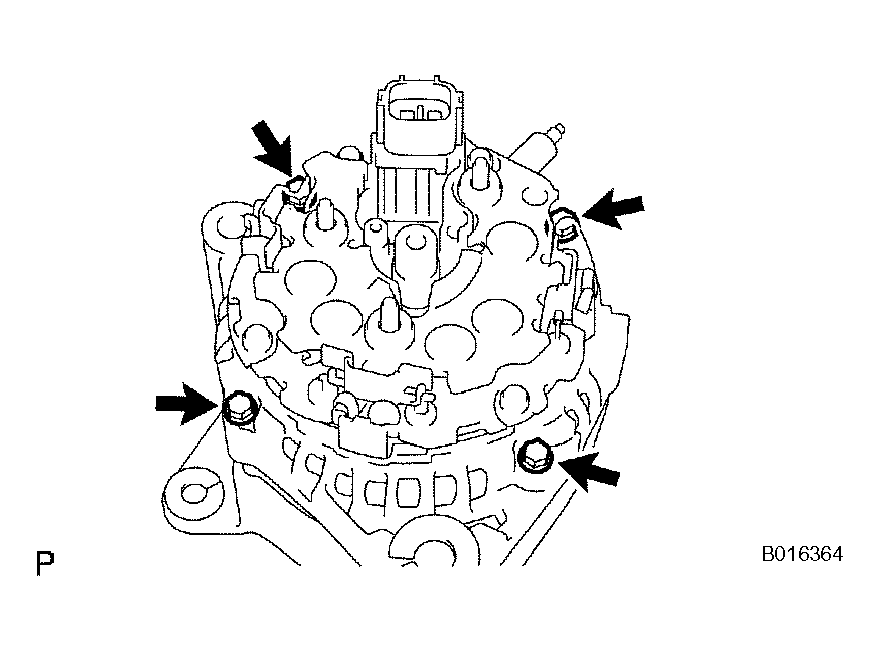

1. Remove the 4 bolts.

  Fig 8: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the coil assembly.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011)
3. Remove the generator washer.
REMOVE GENERATOR ROTOR ASSEMBLY

Fig 9: Identifying Coil Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
