Rear Axle Shaft: Components

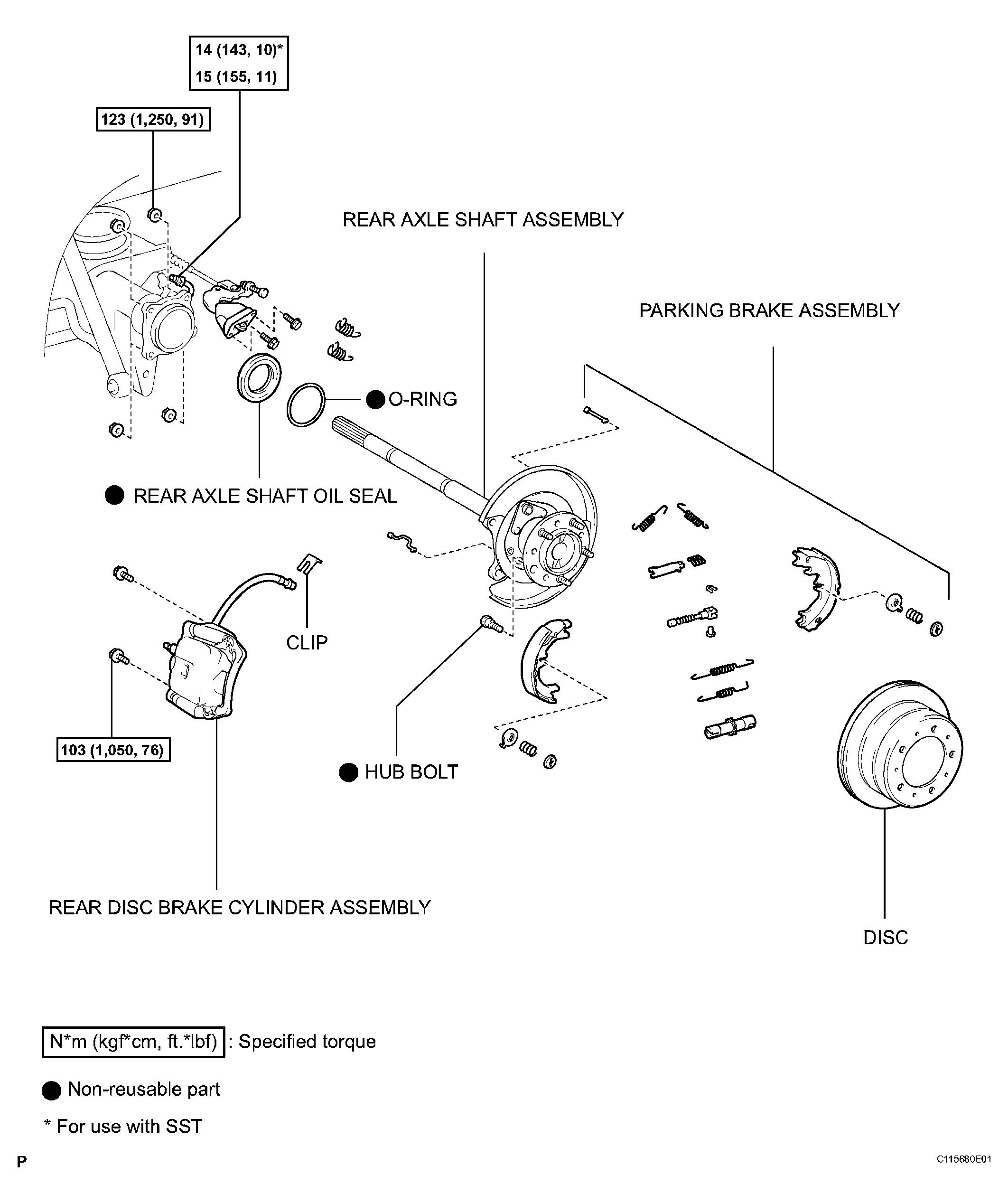

Fig 1: Rear Axle Shaft Replacement Components With Torque Specifications (1 Of 2)
G04063480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

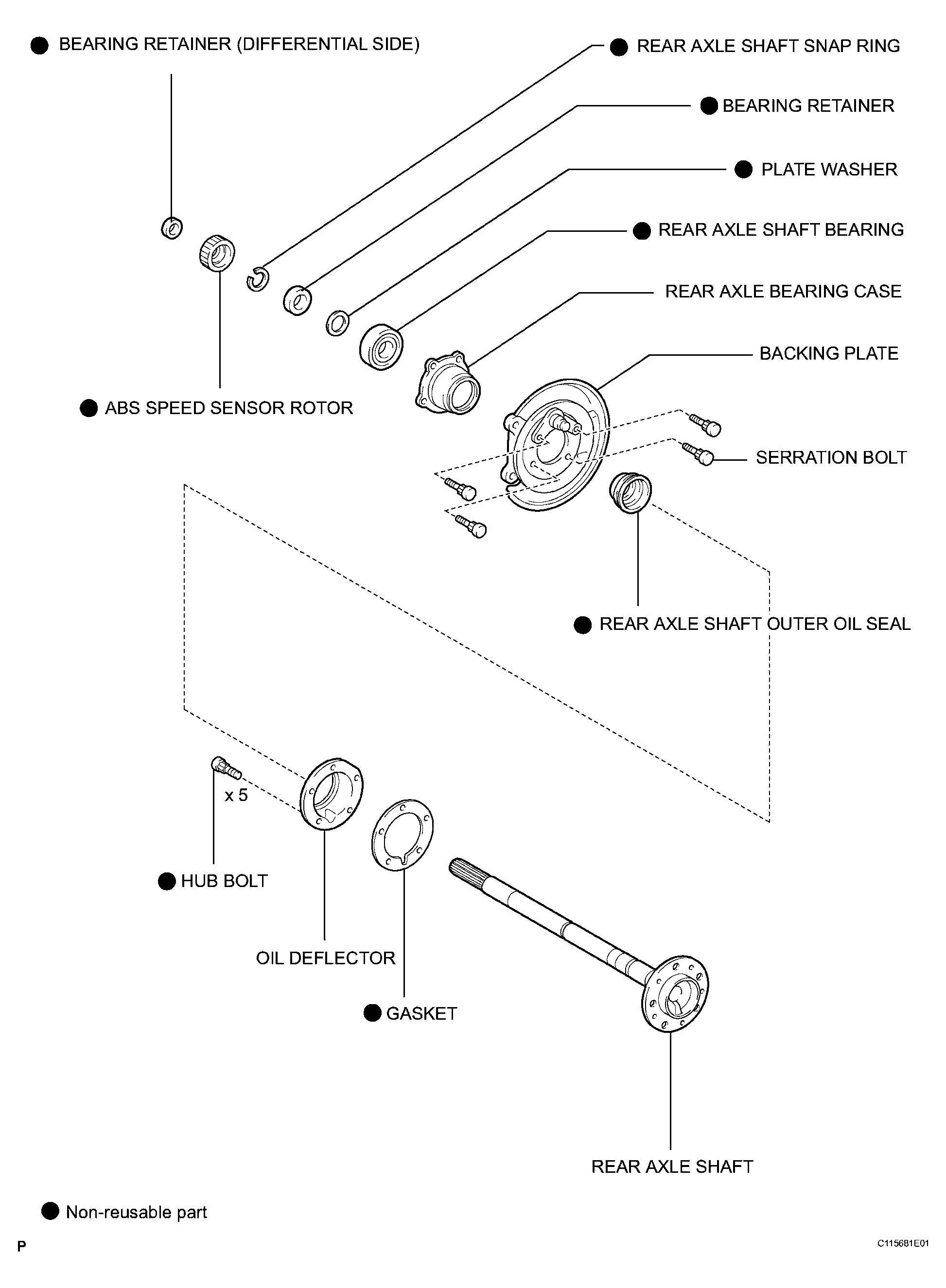

Fig 2: Rear Axle Shaft Replacement Components With Torque Specifications (2 Of 2)
G04063481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
