DTC C1254/54 Pressure Switch Circuit: Wiring Diagram

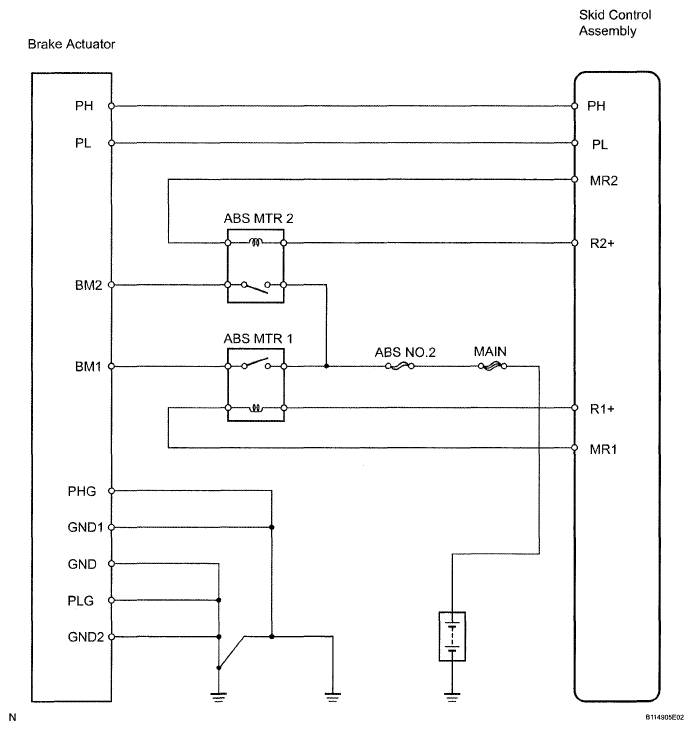

Fig 1: Pressure Switch - Wiring Diagram

G05197641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
