Roof Headlining: Components

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 4)
G04066112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

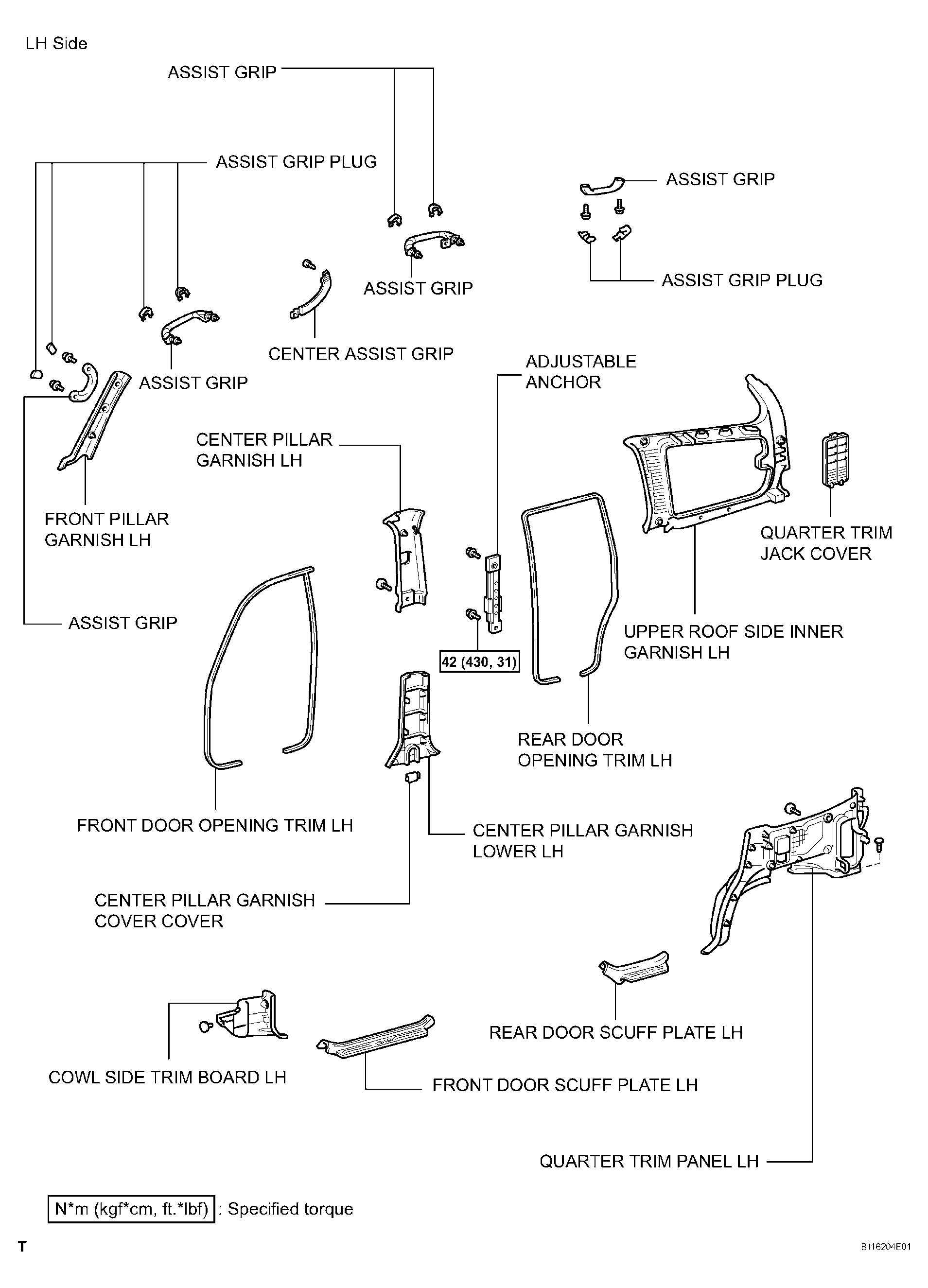

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 4)
G04066113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

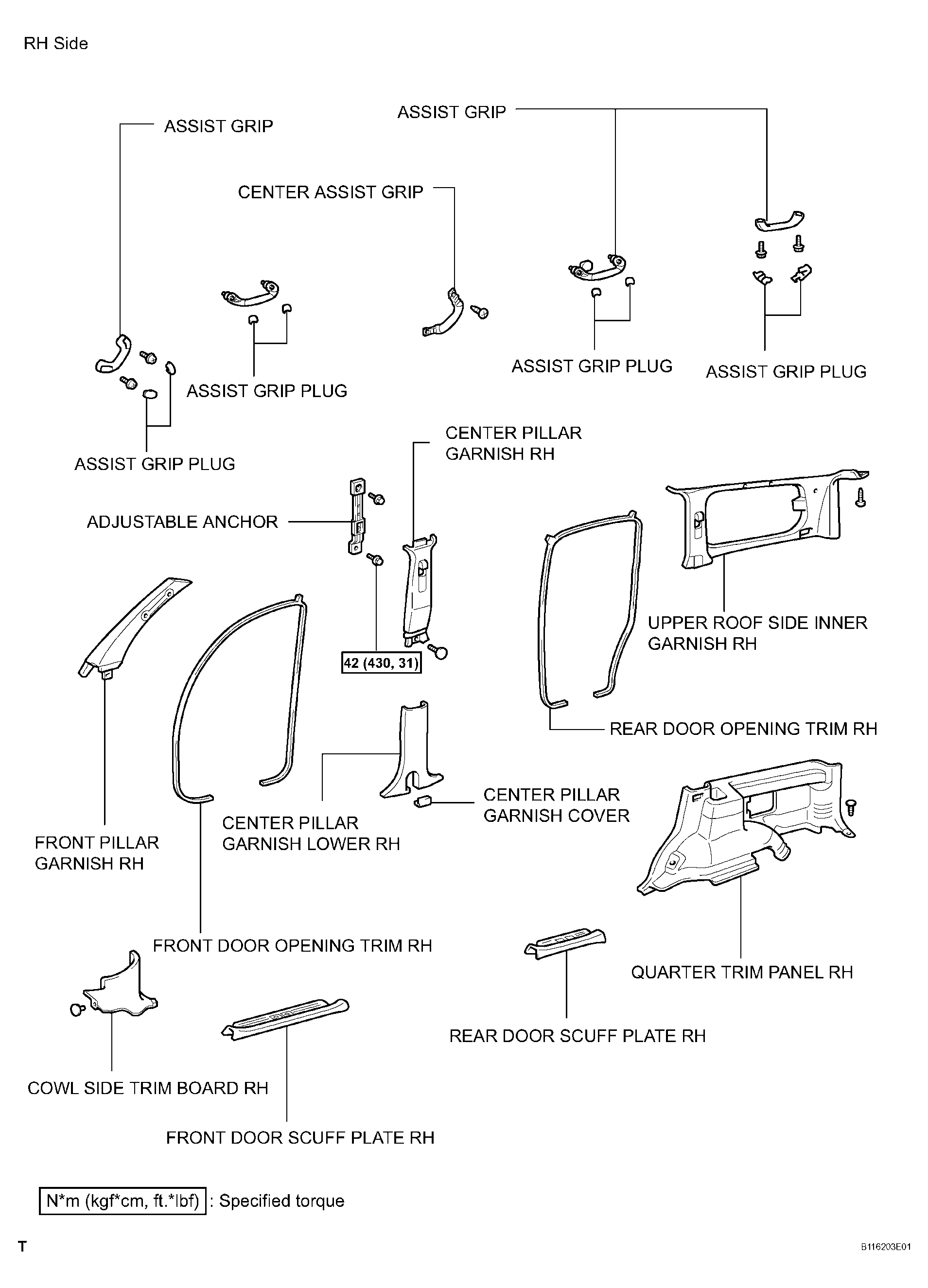

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 4)
G04066114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

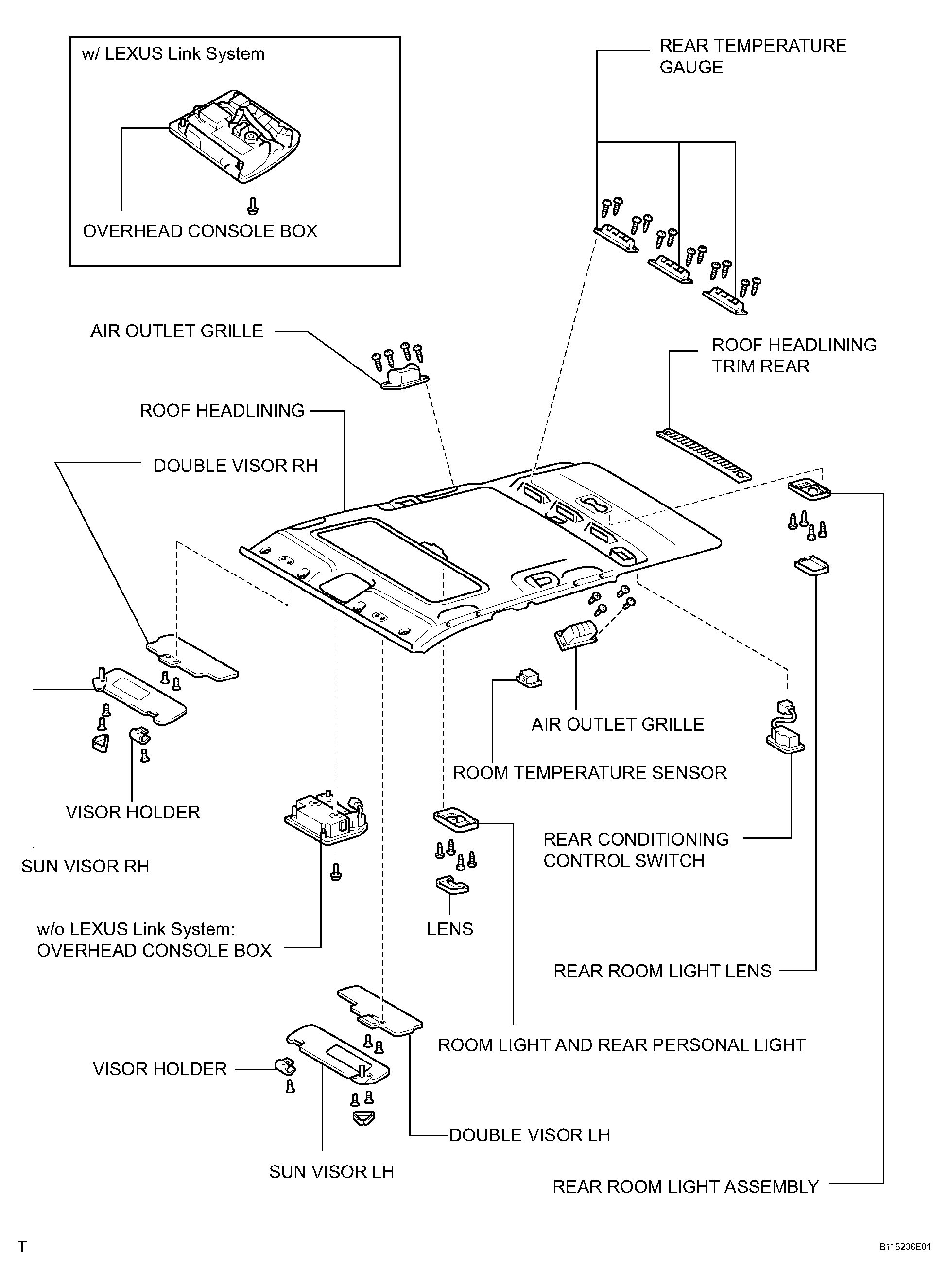

Fig 4: Identifying Roof Headlining Components (4 Of 4)
G04066115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
