Side Step: Components

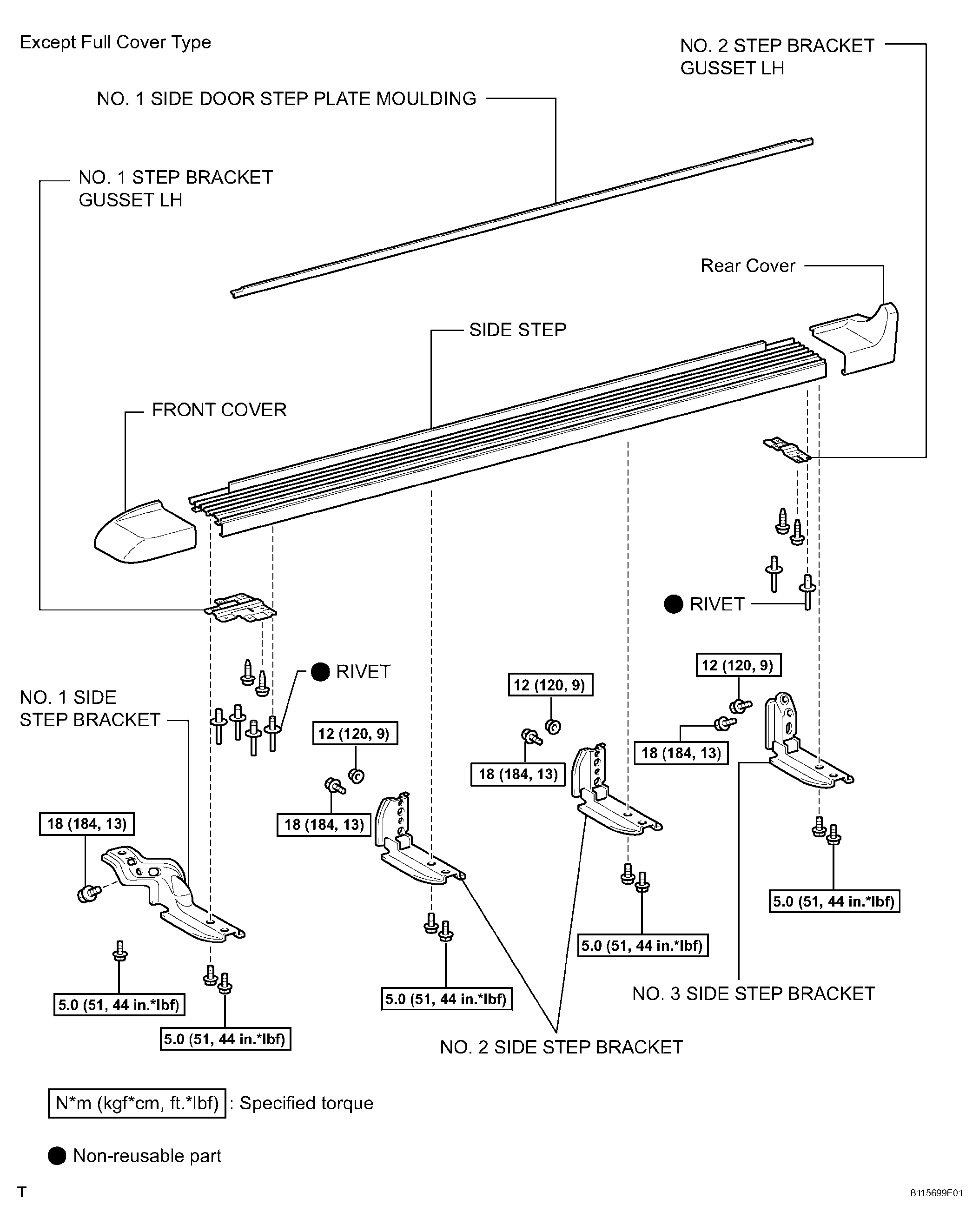

Fig 1: Side Step Replacement Components With Torque Specifications (1 Of 2)
G04066110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

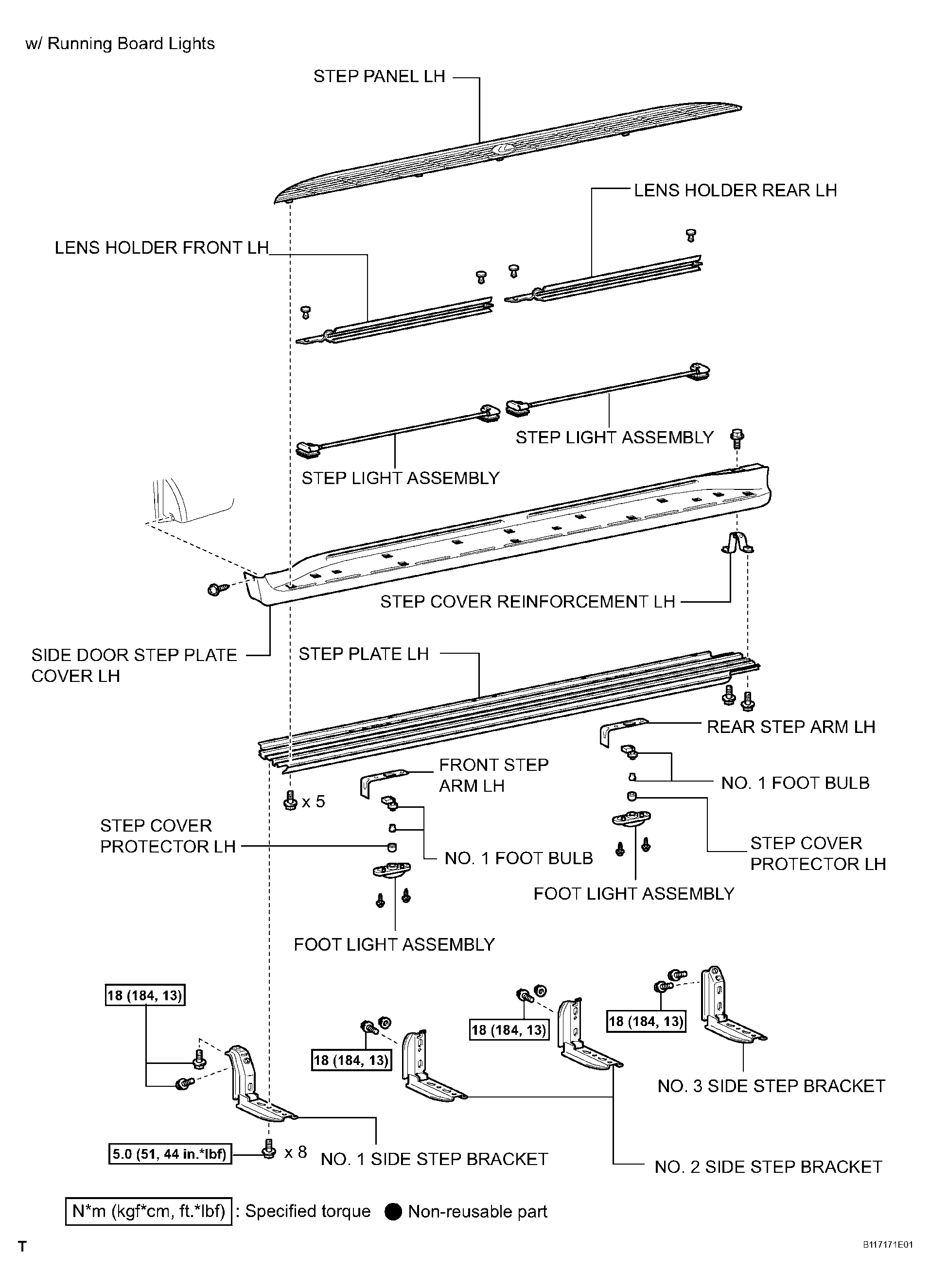

Fig 2: Side Step Replacement Components With Torque Specifications (2 Of 2)
G04066111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
