Engine Hood Courtesy Switch: Installation

CONNECT HOOD LOCK CONTROL CABLE ASSEMBLY
1. Install the hood lock control cable with the hood lock.
INSTALL HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)
1. Apply MP grease to the sliding surface of the lock.
2. Install the hood lock (engine hood courtesy switch) with the 2 bolts and nut.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

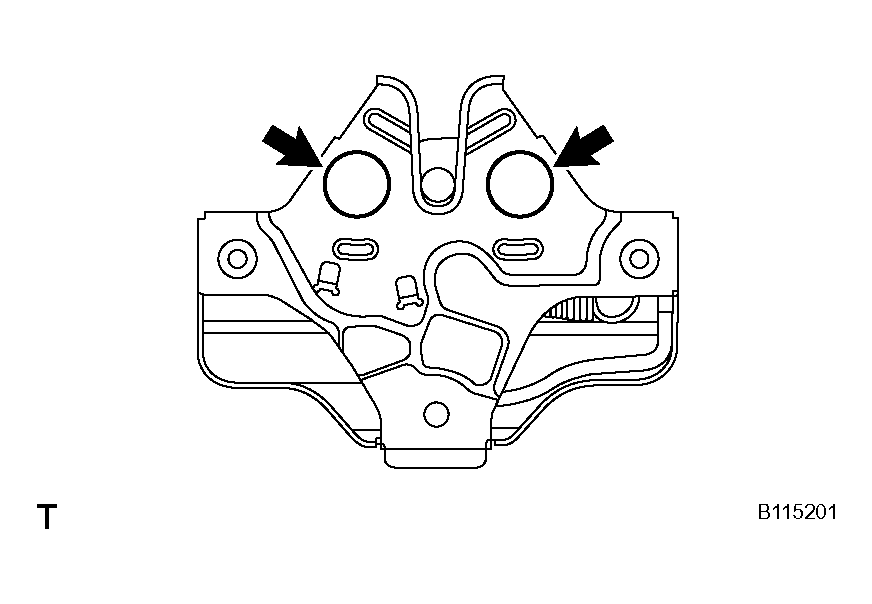

Fig 1: Identifying Hood Lock (Engine Hood Courtesy Switch) With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
