Engine Hood Courtesy Switch: Components

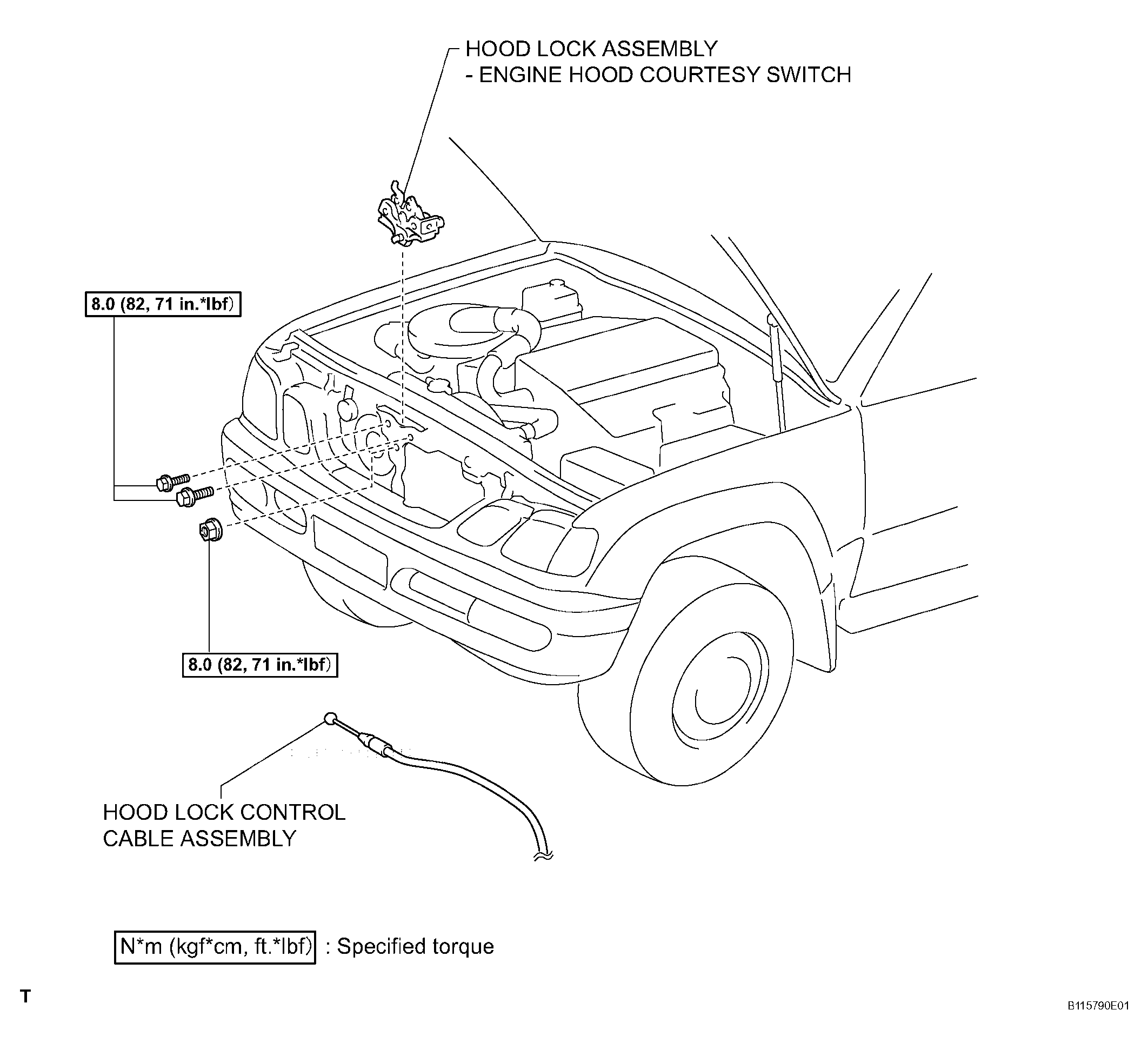

Fig 1: Engine Hood Courtesy Switch Replacement Components With Torque Specifications

G04064942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
