Terminals Of Ecu

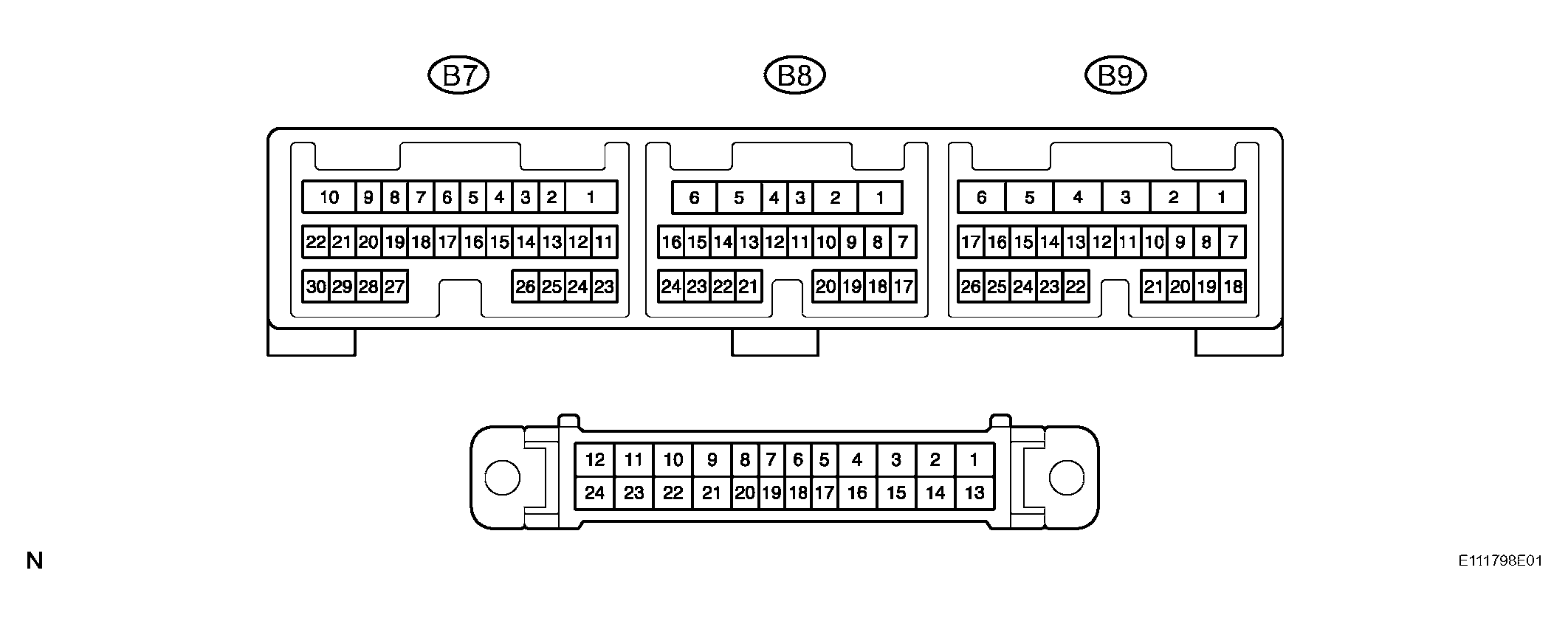

- CHECK BODY ECU (MAIN)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRING COLOR TERMINAL DESCRIPTIONSymbols (Terminal No.) Wiring Color Condition Specified Condition PRG (B8-3) - GND1 (4) V - Body ground Communication circuit (door control receiver) - PRG (B8-3) - GND2 (16) R-B - Body ground Communication circuit (door control receiver) - RDA (B8-4) - GND1 (4) L - Body ground Communication circuit (door control receiver) - RDA (B8-4) - GND2 (16) L - Body ground Communication circuit (door control receiver) -
