Transmitter Battery: Removal

  1. REMOVE TRANSMITTER HOUSING COVER
    NOTE: Special caution should be taken when handling each component as they are precise electronic components.
    1. Using a screwdriver, remove the screw.
    2. Push the cover with your finger as shown in the illustration so a gap appears. Then pry out the cover using that gap.
    NOTE: Do not forcibly pry up the cover.
  2. REMOVE DOOR CONTROL TRANSMITTER MODULE SUB-ASSEMBLY

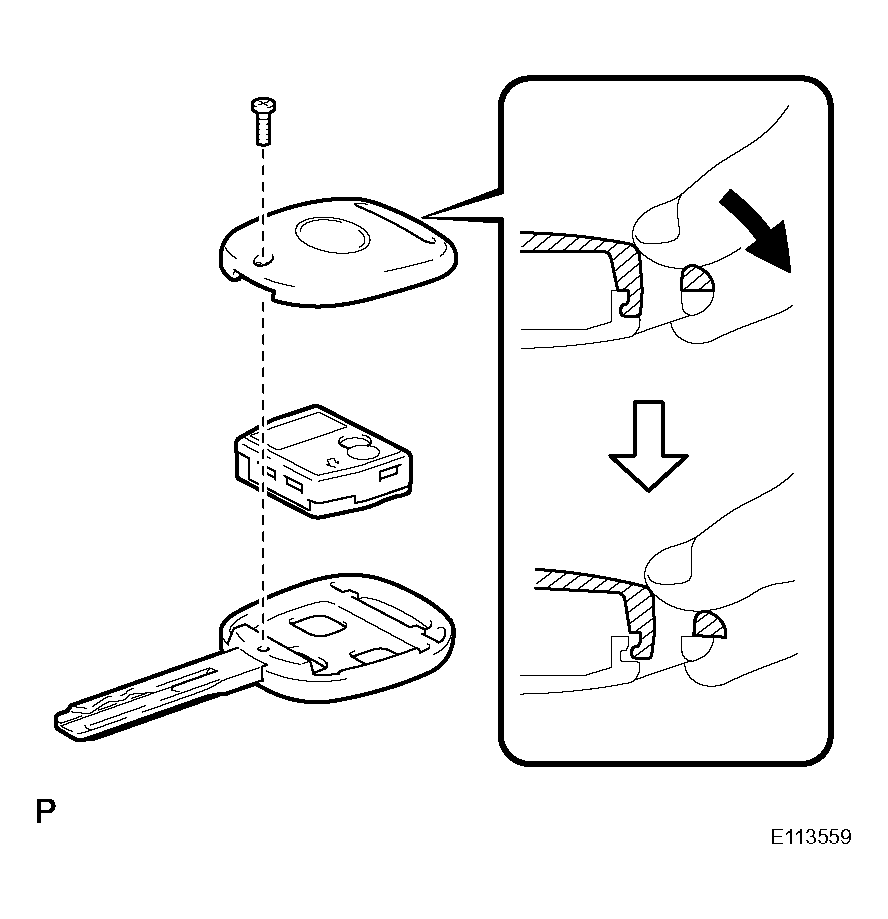

    Fig 1: Pushing Cover
    G04065218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMITTER BATTERY
    1. Using a coin or other flat object, pry open the transmitter cover.
    2. Remove the transmitter battery (lithium battery).
    NOTE:
    • Do not push the terminals with your finger.
    • Forcibly prying up the battery (lithium battery) to remove it will deform the terminals.
    • Do not touch the battery with wet hands. Water may cause rust.
    • Do not touch or move any components inside the transmitter because handling the components may interfere with proper operation of the transmitter.
    Fig 2: Identifying Transmitter Battery (Lithium Battery)
    G04065219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
