Power Source Circuit: Wiring Diagram

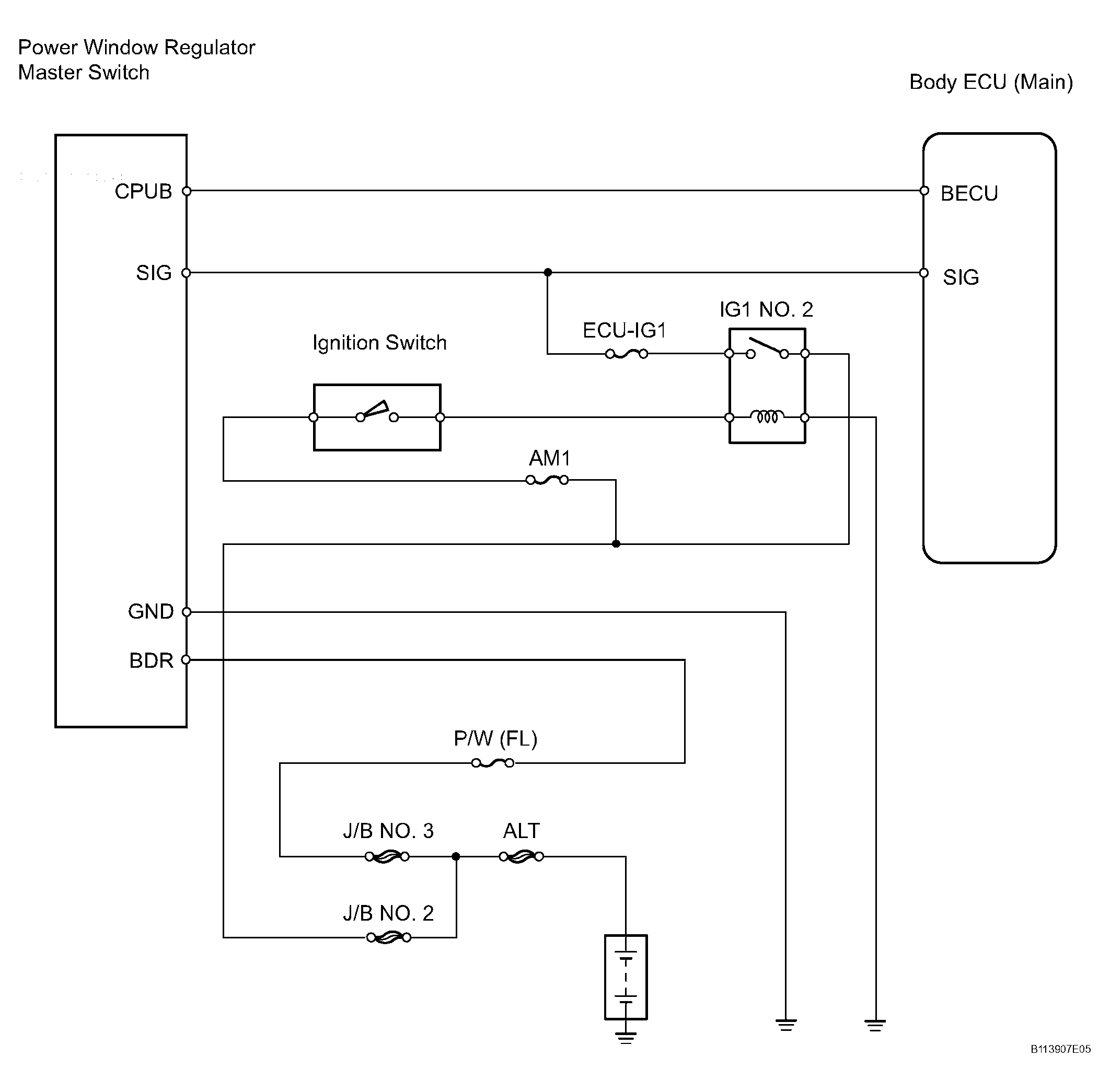

Fig 1: Power Source - Wiring Diagram

INSPECT FUSE (ECU-IG1, AM1, P/W (FL))
1. Remove the ECU-IG1 and AM1 fuses from the cowl side junction block LH.
2. Remove the P/W (FL) fuse from the cowl side junction block RH.
3. Measure the resistance of the fuses.
Standard resistance:

Below 1 Ω

NG: REPLACE FUSE

OK: Go To Next Step
CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (CPUB, SIG VOLTAGE)
1. Turn the ignition switch OFF.
2. Measure the voltage between terminals CPUB, SIG, BDR and GND.
Standard voltage:

10 to 14 V

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

NG: Go To Next Step
CHECK WIRE HARNESS (MASTER SWITCH - BATTERY AND BODY GROUND)
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
