Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Front Door Lock >> Components

Front Door Lock: Components

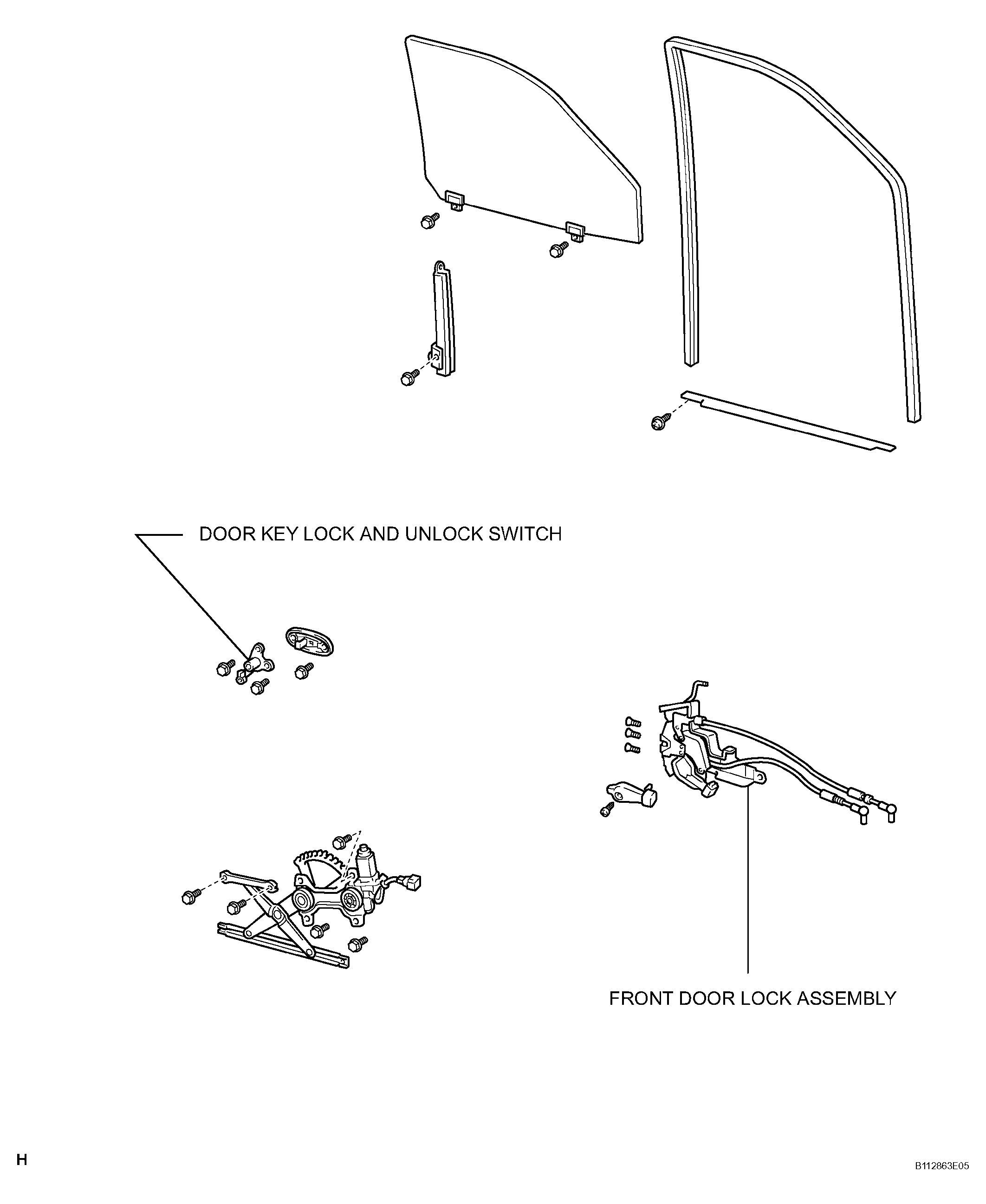

Fig 1: Identifying Front Door Lock Components

G04065234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
