System Diagram

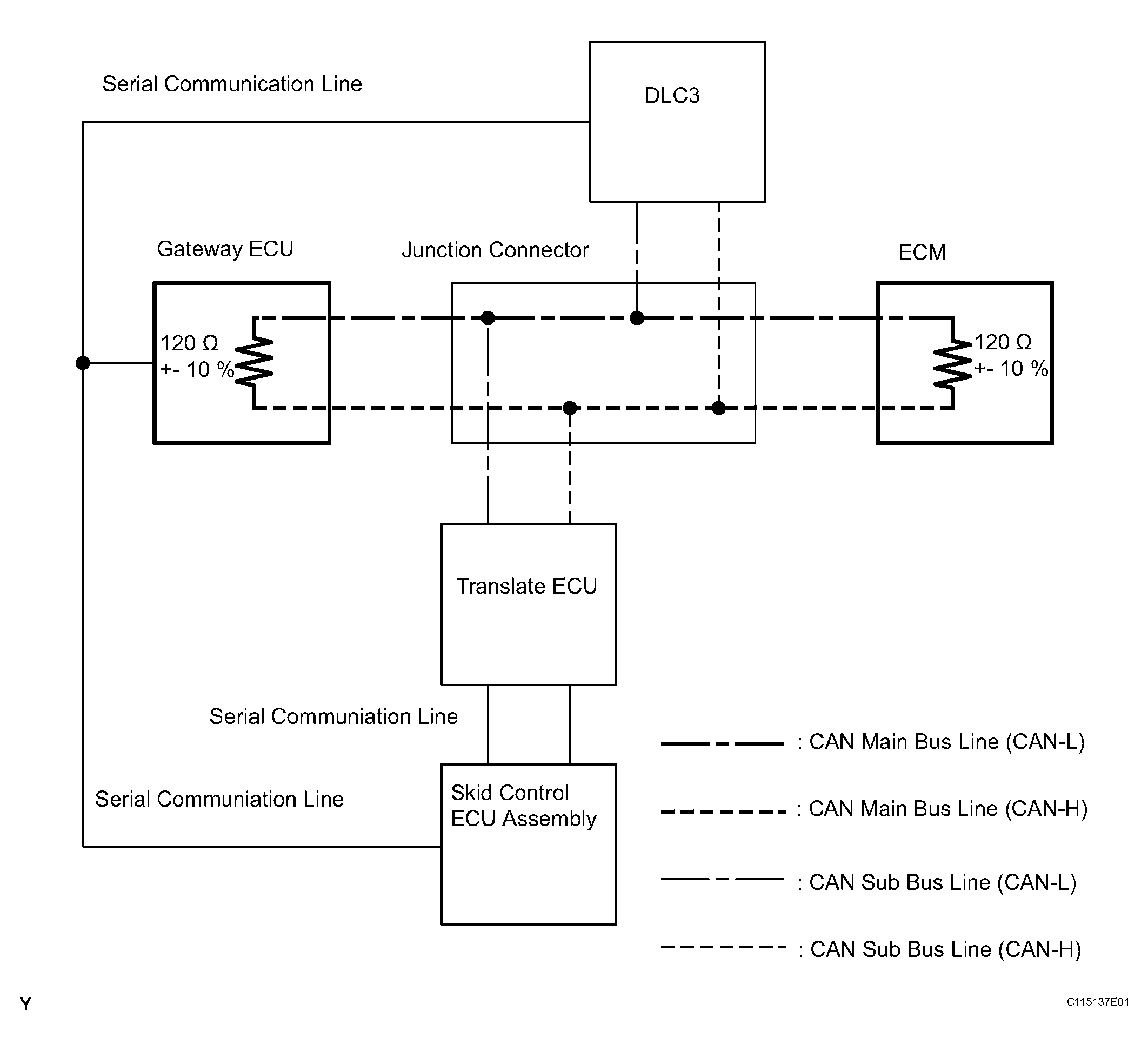

Fig 1: System Diagram Of Can Communication System
G04066214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The ECM uses the CAN communication system to perform

DTC communication instead of the conventional communication line (SIL).
