DTC C1554/54 EPS Relay Circuit: Wiring Diagram

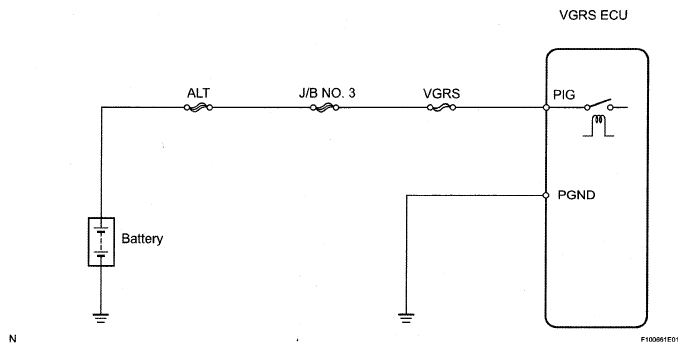

Fig 1: EPS Relay Circuit - Wiring Diagram
G05283430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK VOLTAGE BETWEEN TERMINALS PIG AND PGND OF VGRS ECU CONNECTOR
    1. Record and clear VGRS DTCs.
    2. Start the engine and measure the voltage between terminals V10-1 (PIG) and V10-2 (PGND) of the VGRS ECU.
      Fig 2: Measuring Voltage Between Terminals V10-1 (PIG) And V10-2 (PGND) Of VGRS ECU
      G05283429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Result Proceed to
      9 to 16 V A
      Below 9 V B
      Above 16 V C

    B: CHECK AND REPAIR HARNESS AND VGRS FUSE

    C: CHECK AND REPAIR CHARGING SYSTEM

    A: Go to Next Step

  2. CHECK VGRS FOR DTC C1554/54
    1. Is DTC C1551/54 present?
      NOTE: Fault may be intermittent. Check harness and connectors carefully and retest.

    YES: REPLACE VGRS ECU

    NG: NO FAULT DETECTED
