FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Components

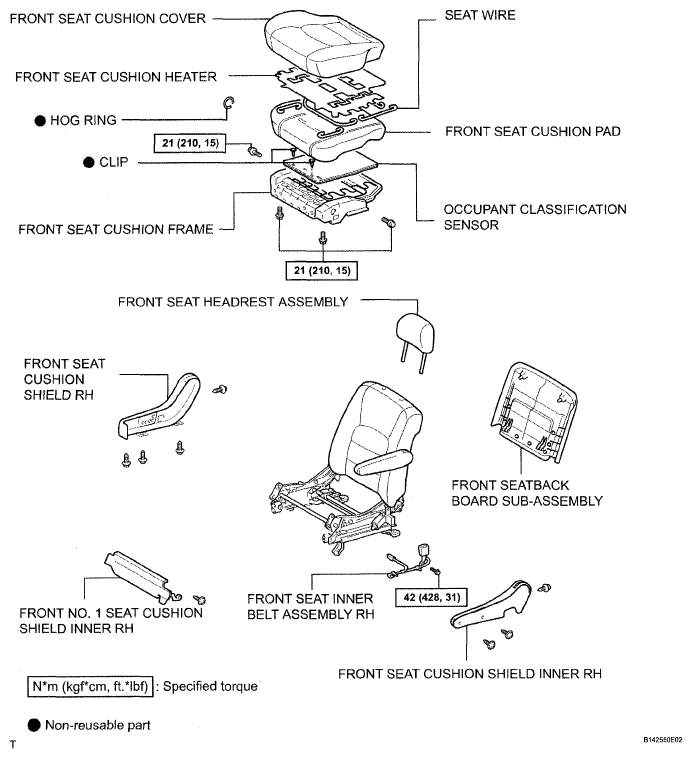

Fig 1: Identifying Front Seat Cushion Assembly (W/ Occupant Classification Ecu, Occupant Classification Sensor) Components
G05283919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
