STEERING GEAR (w/o VGRS): Components

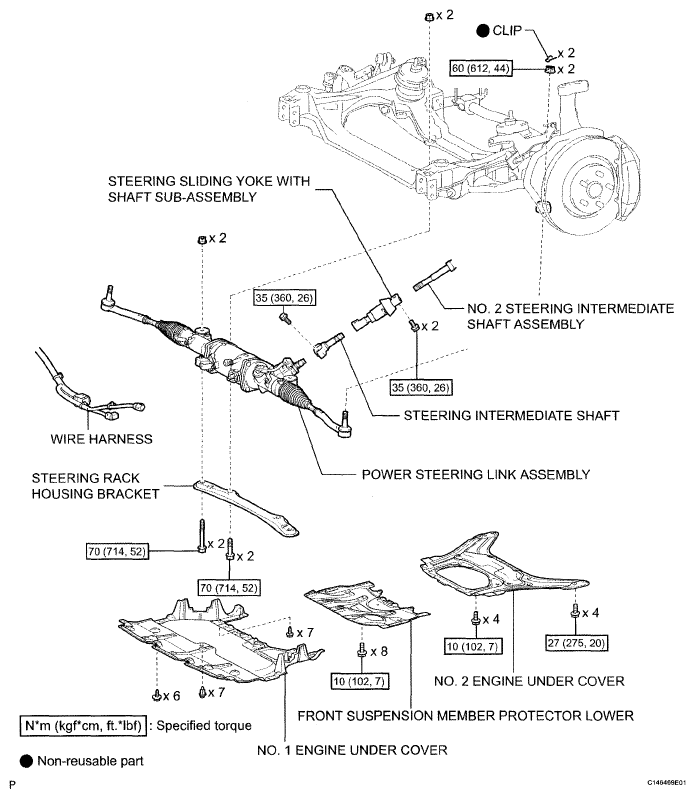

Fig 1: Steering Gear (W/O VGRS) Replacement Components With Torque Specifications (1 Of 2)
G04944379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

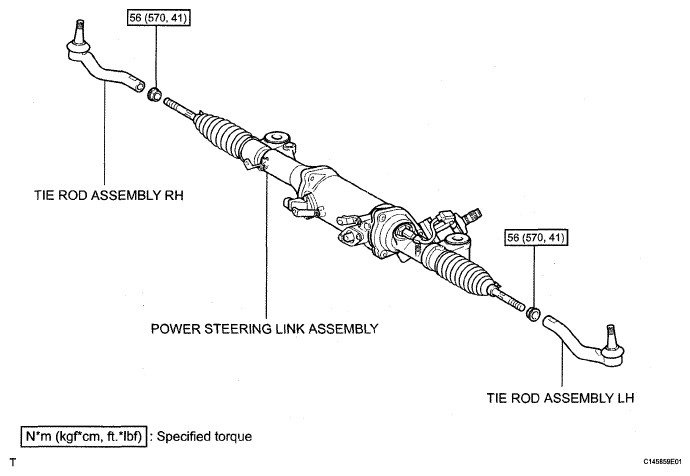

Fig 2: Steering Gear (W/O VGRS) Replacement Components With Torque Specifications (2 Of 2)
G04944380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
