STEERING GEAR (w/ VGRS): Components

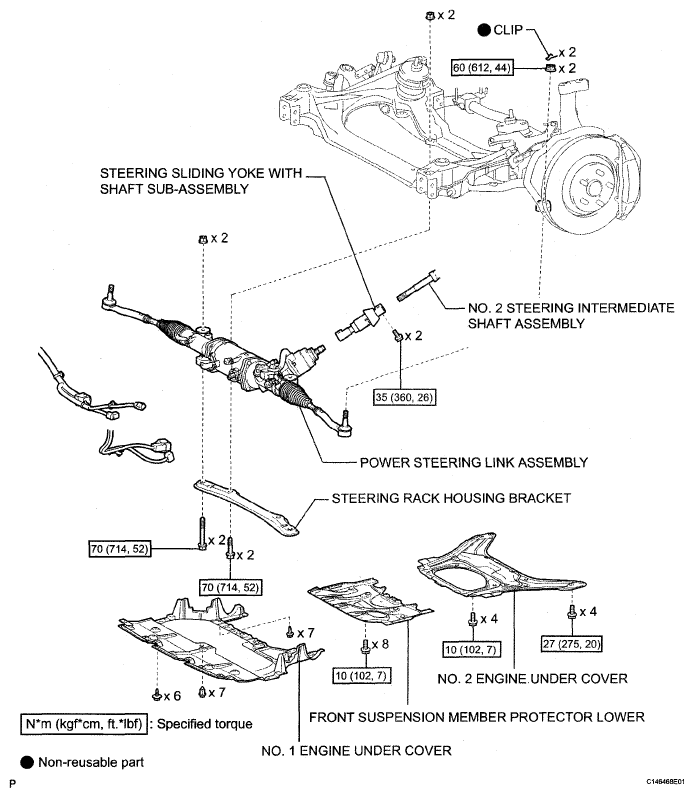

Fig 1: Steering Gear (W/ VGRS) Replacement Components With Torque Specifications (1 Of 2)
G04944367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

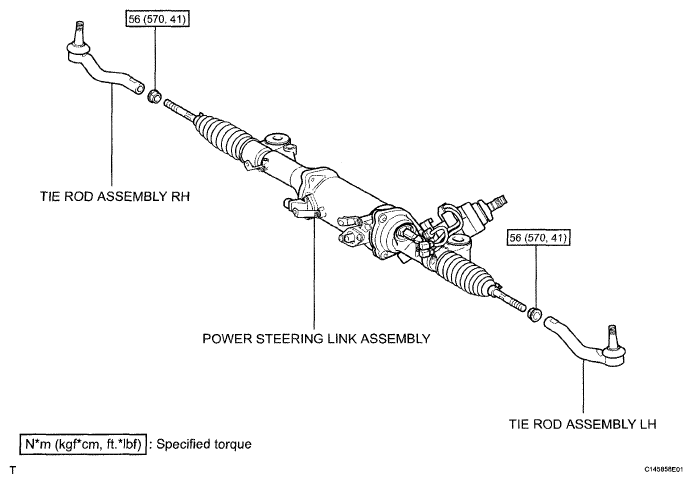

Fig 2: Steering Gear (W/ VGRS) Replacement Components With Torque Specifications (2 Of 2)
G04944368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
