PS Warning Light Remains ON: Wiring Diagram

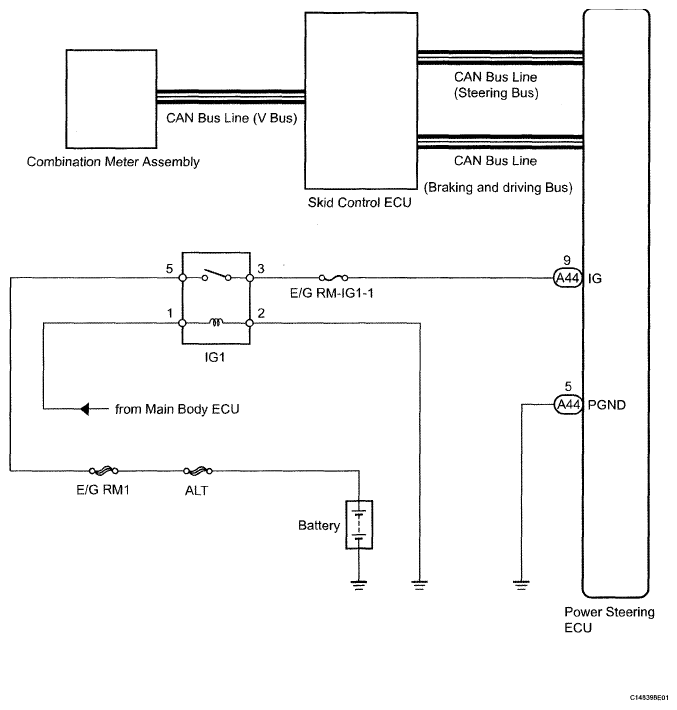

Fig 1: PS Warning Light Remains ON - Wiring Diagram

G04944365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
