DTC C1528 Motor Rotation Angle Sensor Malfunction: Wiring Diagram

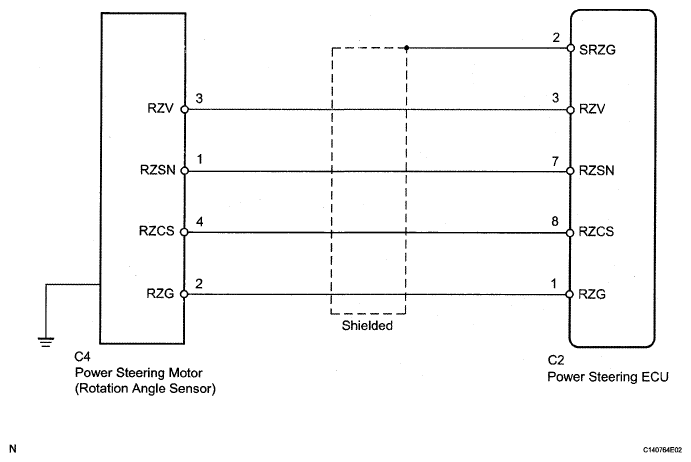

Fig 1: Motor Rotation Angle Sensor Malfunction - Wiring Diagram

G04944345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
