Steering Pad: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

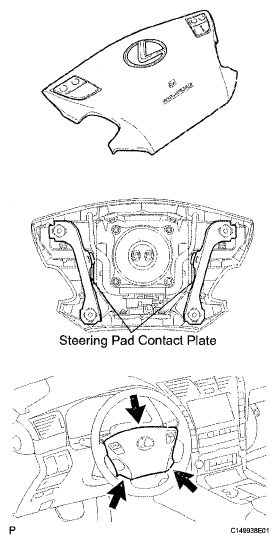

Fig 1: Identifying Steering Pad (Vehicle Involved In Collision And Airbag Has Not Deployed)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SWITCH AND VOLUME CASE
1. Using a screwdriver, detach the claw to remove the switch.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Switch And Volume Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. Using a screwdriver, detach the 2 claws to remove the No. 2 steering wheel cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 3: Identifying Claws And No. 2 Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD
1. Using a T30 "TORX" socket wrench, loosen the 2 "TORX" screws until the groove along the screw circumference catches on the screw case.

  Fig 4: Locating TORX Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel, as shown in the illustration. Then support the steering pad with one hand.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.

  Fig 5: Locating Horn Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the horn connector.
4. Disconnect the 2 connectors and remove the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
