Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Seat Position Sensor >> Components

Seat Position Sensor: Components

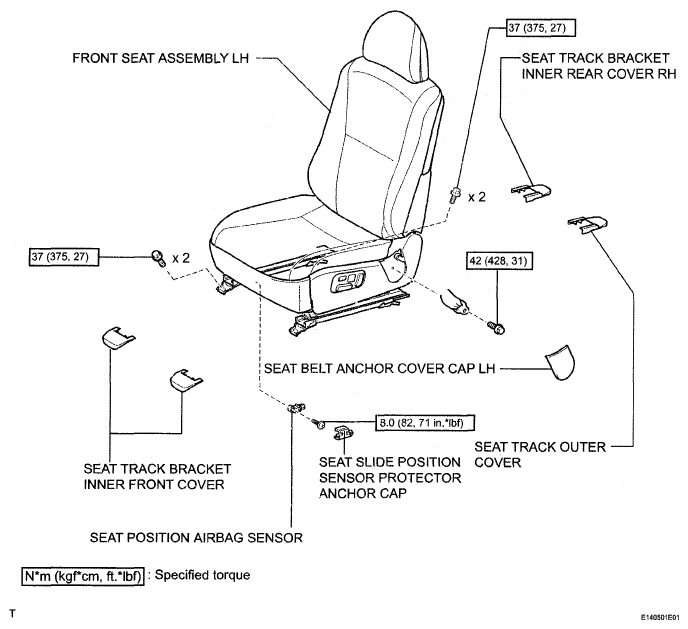

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications

G04951330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
