Rear Airbag Sensor: Components

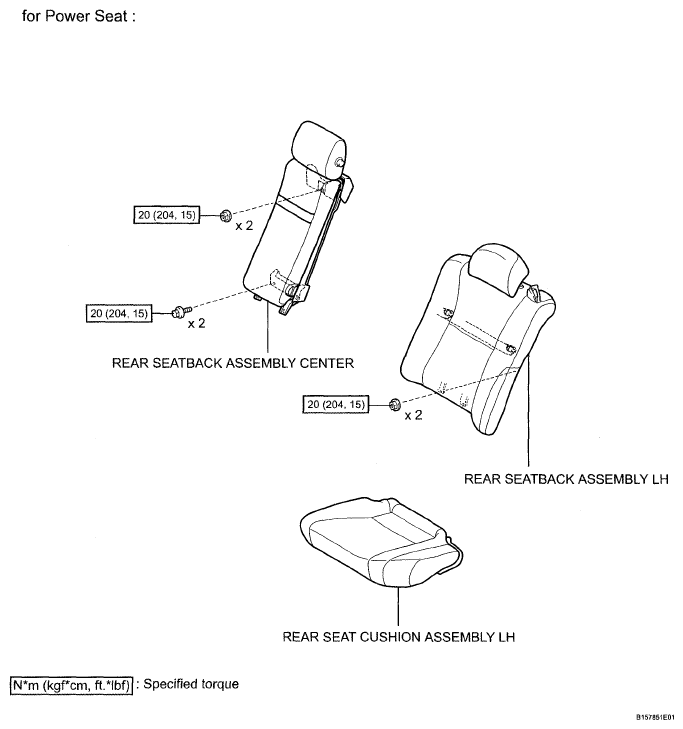

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 4)
G04951324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

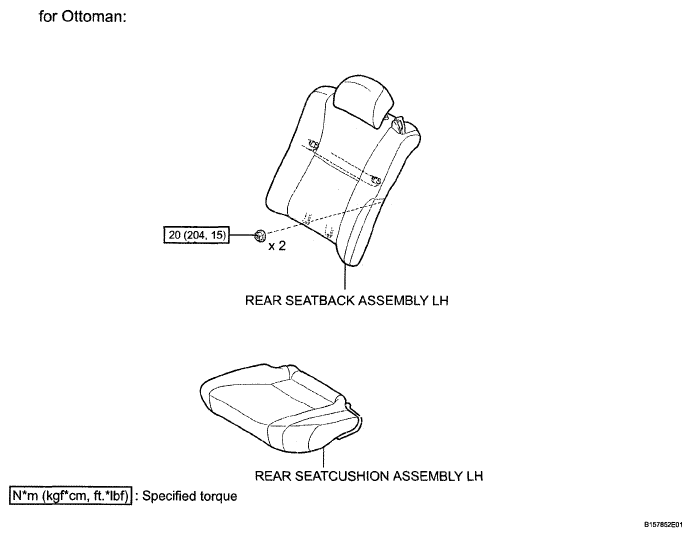

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 4)
G04951325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

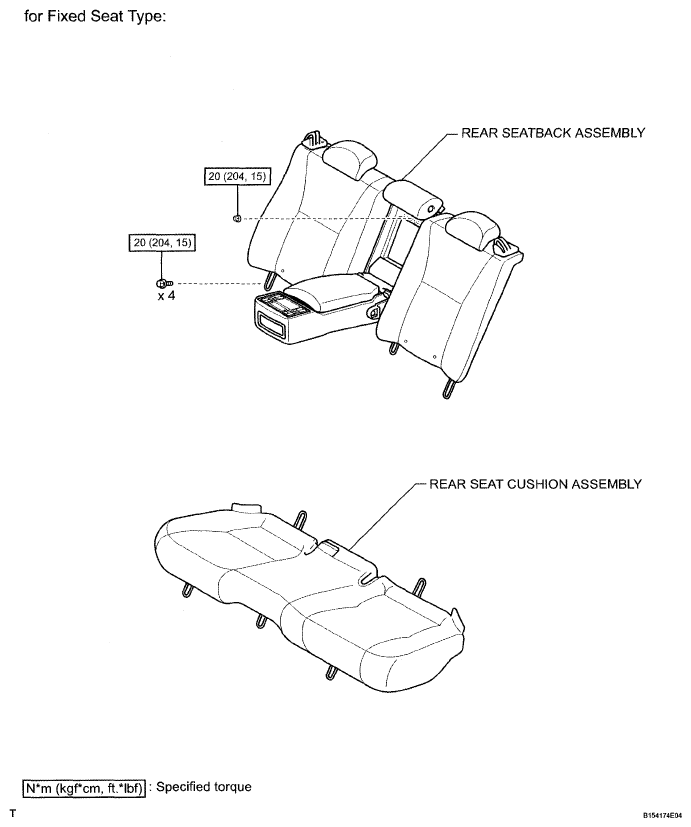

Fig 3: Rear Airbag Sensor Replacement Components With Torque Specifications (3 Of 4)
G04951326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

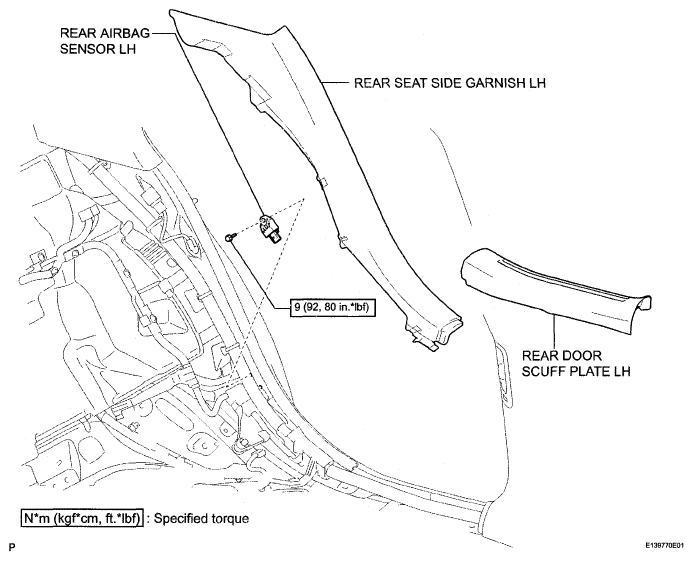

Fig 4: Rear Airbag Sensor Replacement Components With Torque Specifications (4 Of 4)
G04951327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
