Front Airbag Sensor: Components

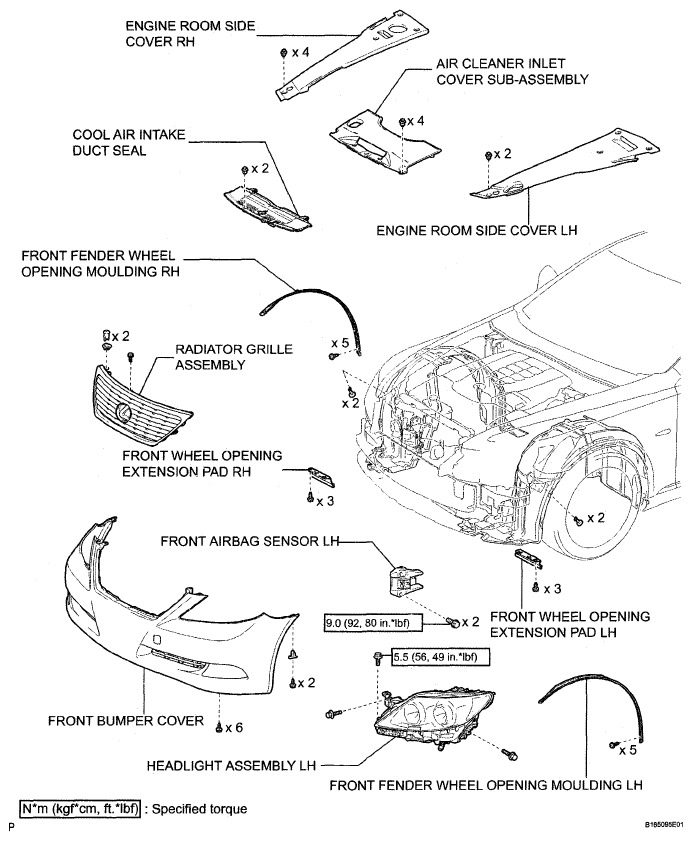

Fig 1: Front Airbag Sensor Replacement Components With Torque Specifications

G04951316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
