Seat Belt Control Ecu: Components

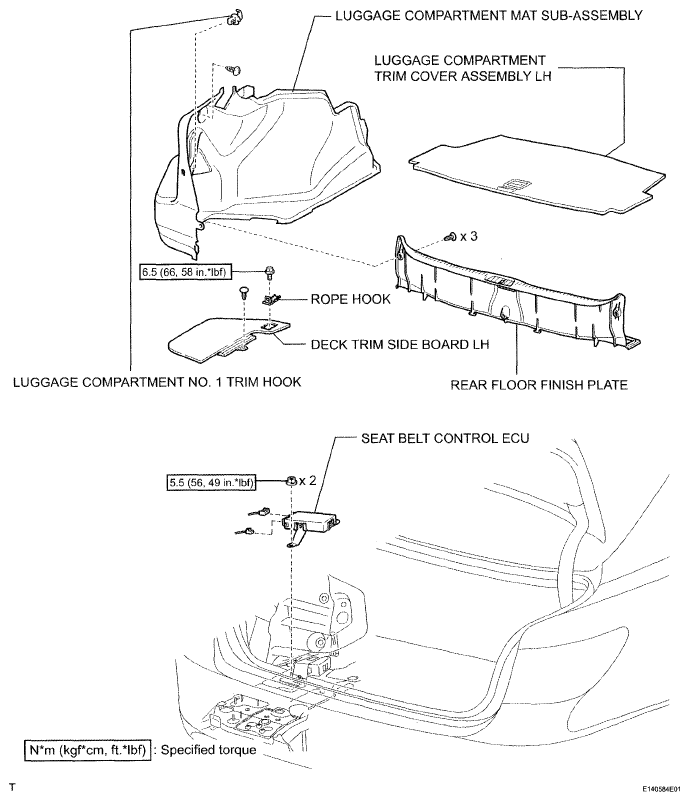

Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications

G04950922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
