ROOM TEMPERATURE SENSOR (for Front Side): Components

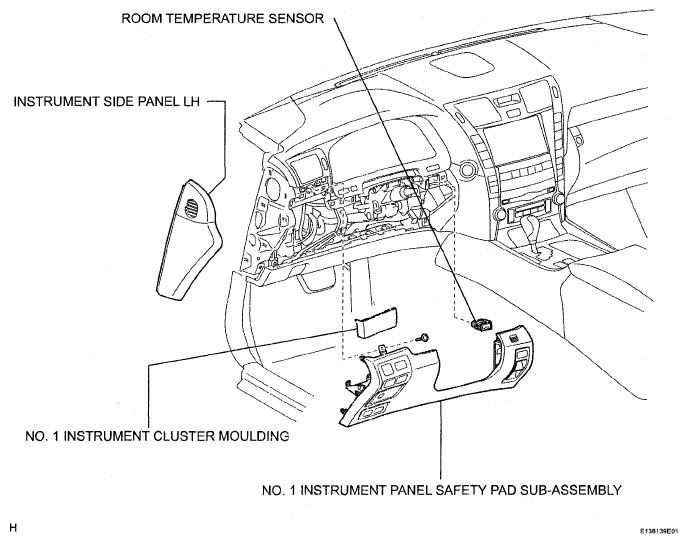

Fig 1: Identifying Room Temperature Sensor Components (For Front Side)

G04950732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
