INTEGRATION CONTROL AND PANEL (for Front Side): Components

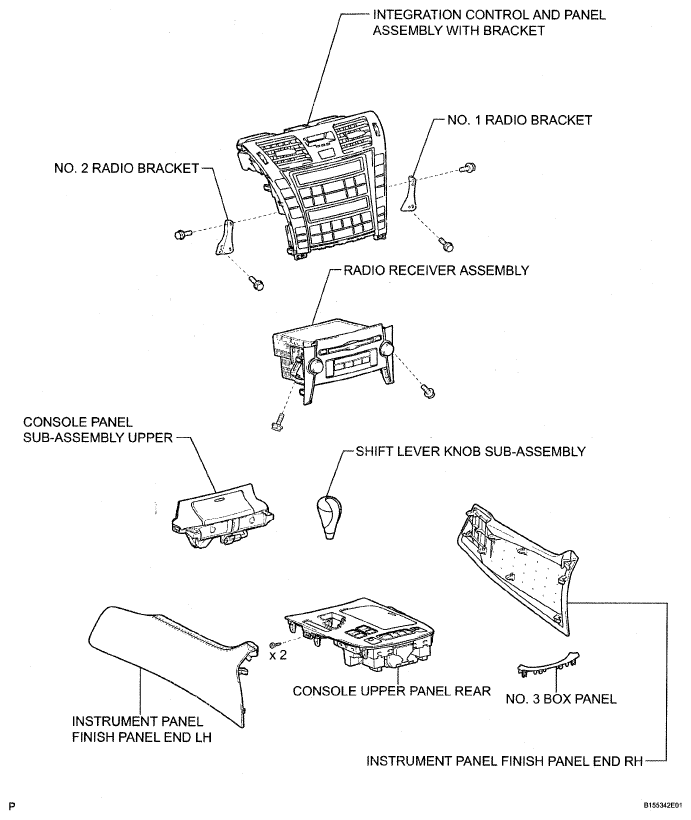

Fig 1: Identifying Integration Control And Panel Components (For Front Side) (1 Of 2)
G04950840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Integration Control And Panel Components (For Front Side) ( Of 2)
G04950841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
