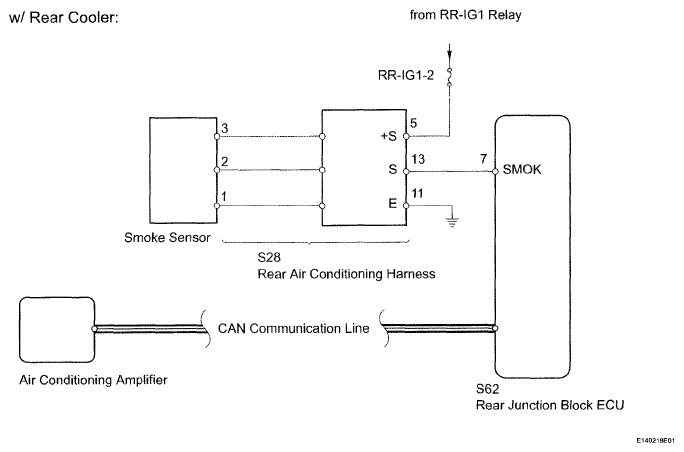

Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning >> Air Conditioning System >> Smoke Sensor Circuit >> Wiring Diagram
