Parts Location

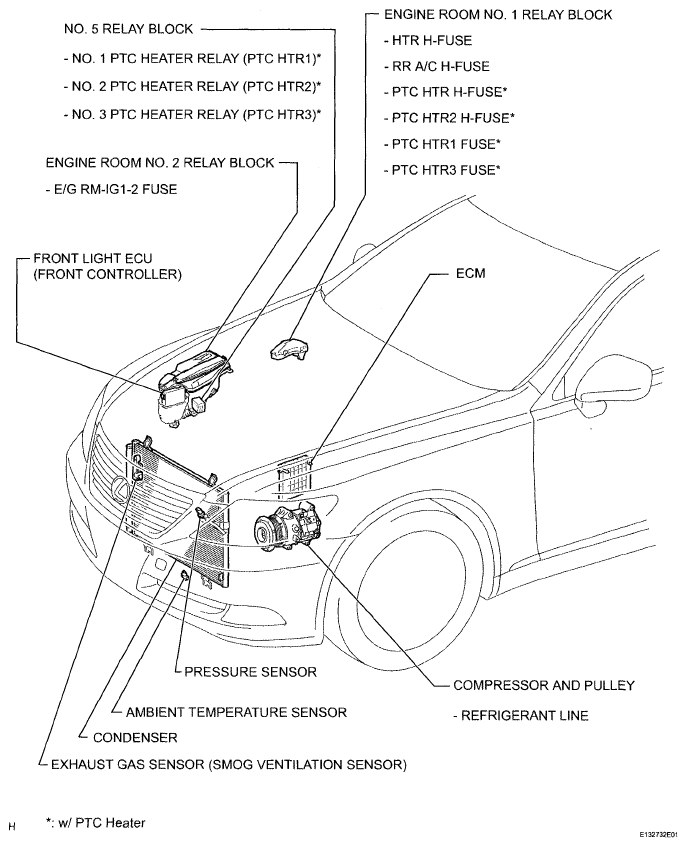

Fig 1: Identifying Air Conditioning System Parts Location (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

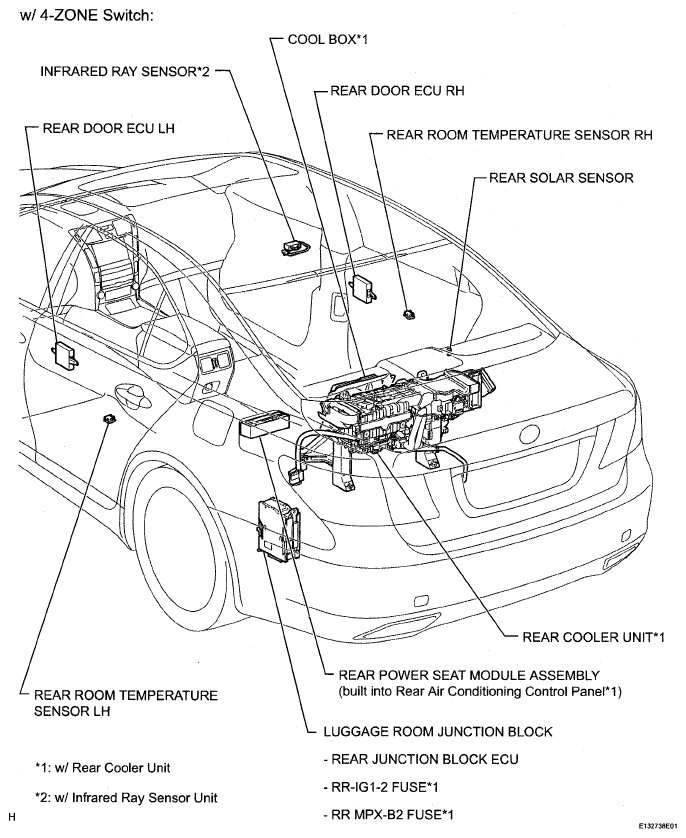

Fig 2: Identifying Air Conditioning System Parts Location (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

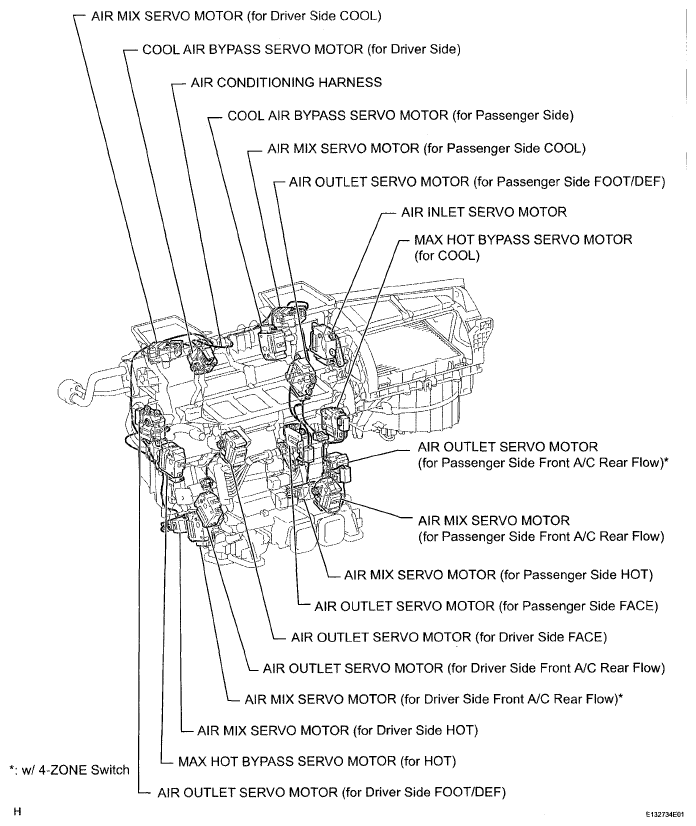

Fig 3: Identifying Air Conditioning System Parts Location (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

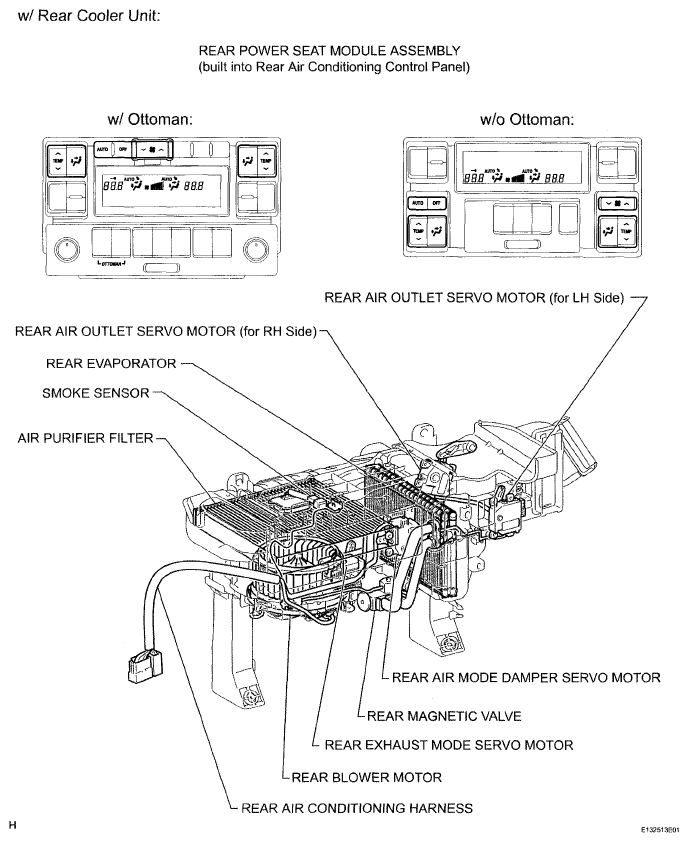

Fig 4: Identifying Air Conditioning System Parts Location (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

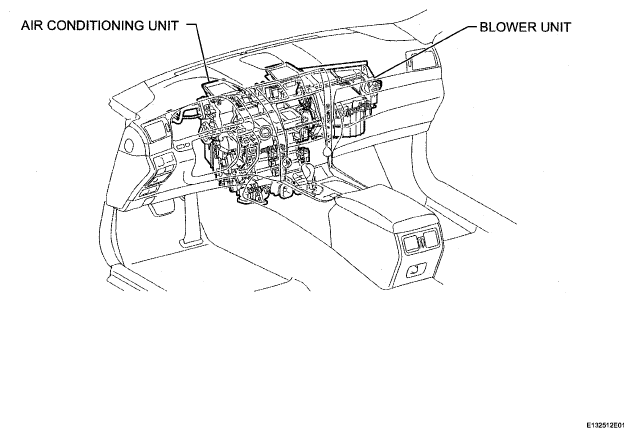

Fig 5: Identifying Air Conditioning System Parts Location (5 Of 7)

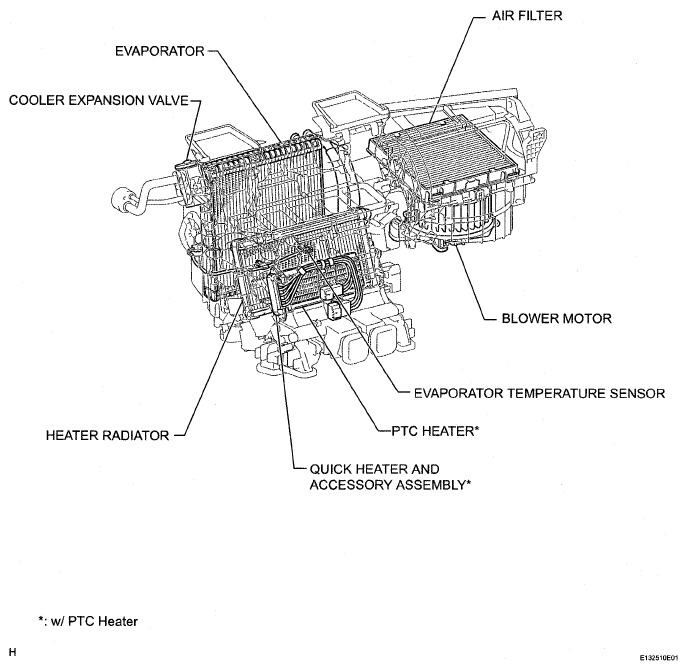

Fig 6: Identifying Air Conditioning System Parts Location (6 Of 7)

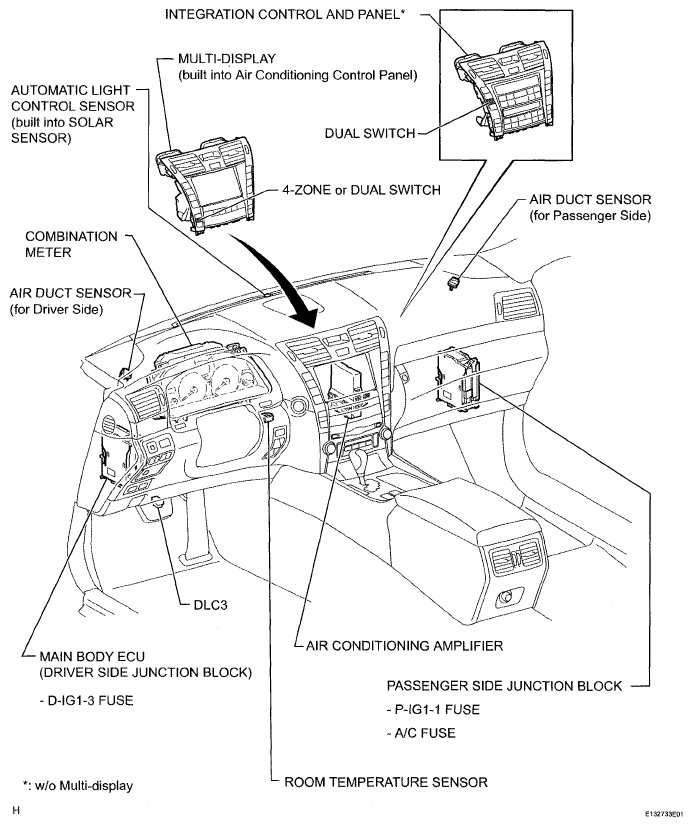

Fig 7: Identifying Air Conditioning System Parts Location (7 Of 7)
