Blower Motor Circuit: Description

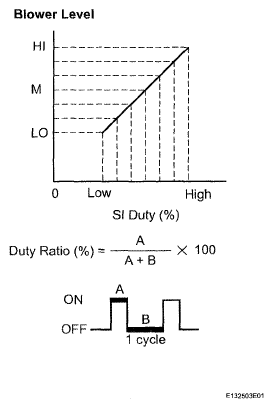

Fig 1: Blower Motor Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The blower motor is operated by signals from the air conditioning amplifier. Blower motor speed signals are transmitted by changes in the duty ratio.

Duty Ratio:

The duty ratio is the ratio of the blower motor ON time (A) to the total of the blower motor ON and OFF time (A + B).

The blower motor controller controls the blower motor speed.
