Air Conditioning Amplifier: Components

Fig 1: Air Conditioning Amplifier Replacement Components With Torque Specifications (1 Of 2)
G04950850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

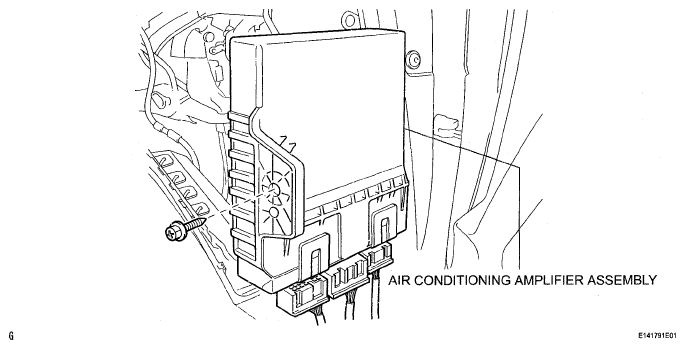

Fig 2: Identifying Air Conditioning Amplifier Components (2 Of 2)
G04950851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
