On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

If the EGR temperature sensor detects EGR flow under the condition that does not call for EGR, a high-flow malfunction is diagnosed.

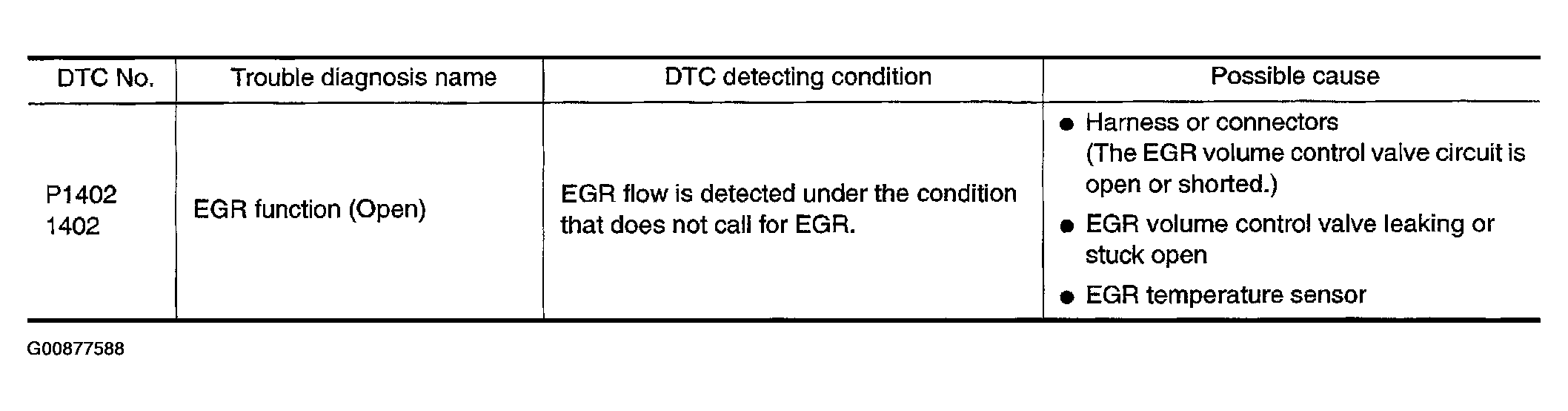

Fig 1: On Board Diagnosis Logic
G00877588Courtesy of NISSAN MOTOR CO., U.S.A.
