With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 60 seconds.
  4. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

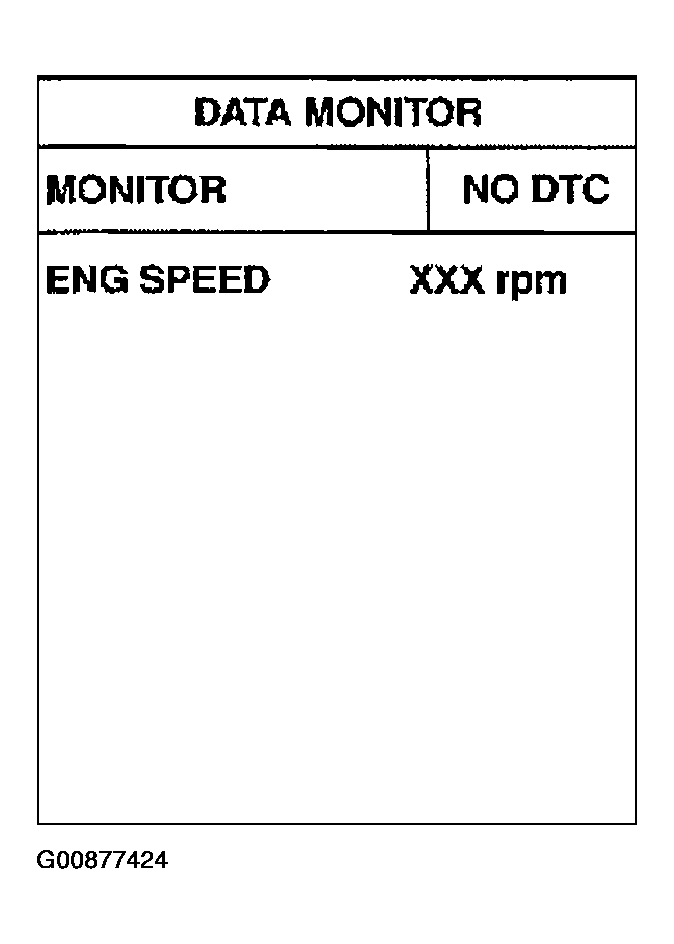

Fig 1: CONSULT-II Display Screen
G00877424Courtesy of NISSAN MOTOR CO., U.S.A.
