4. Check Ignition Timing

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following items. Refer to "BASIC INSPECTION ".

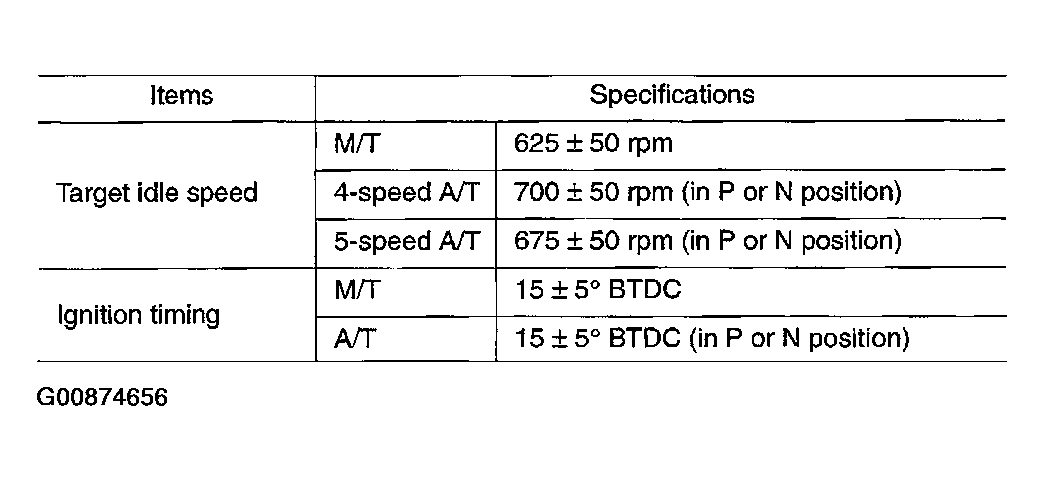

Fig 1: Ignition Timing & Idle Speed Specifications
G00874656Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5.
  2. NG: Follow the "BASIC INSPECTION ".
