Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration>", "Fuel Injection System"

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

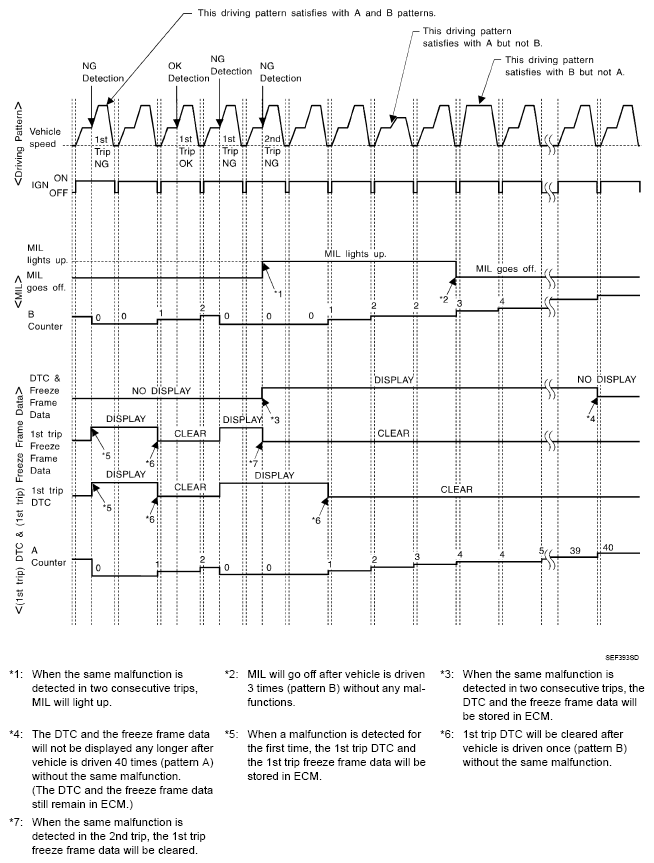

Fig 1: Relationship Chart Between MIL, DTC, 1st Trip DTC And Driving Patterns Except For Misfire
G04915154Courtesy of NISSAN MOTOR CO., U.S.A.
