System - Basic Engine Control System

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

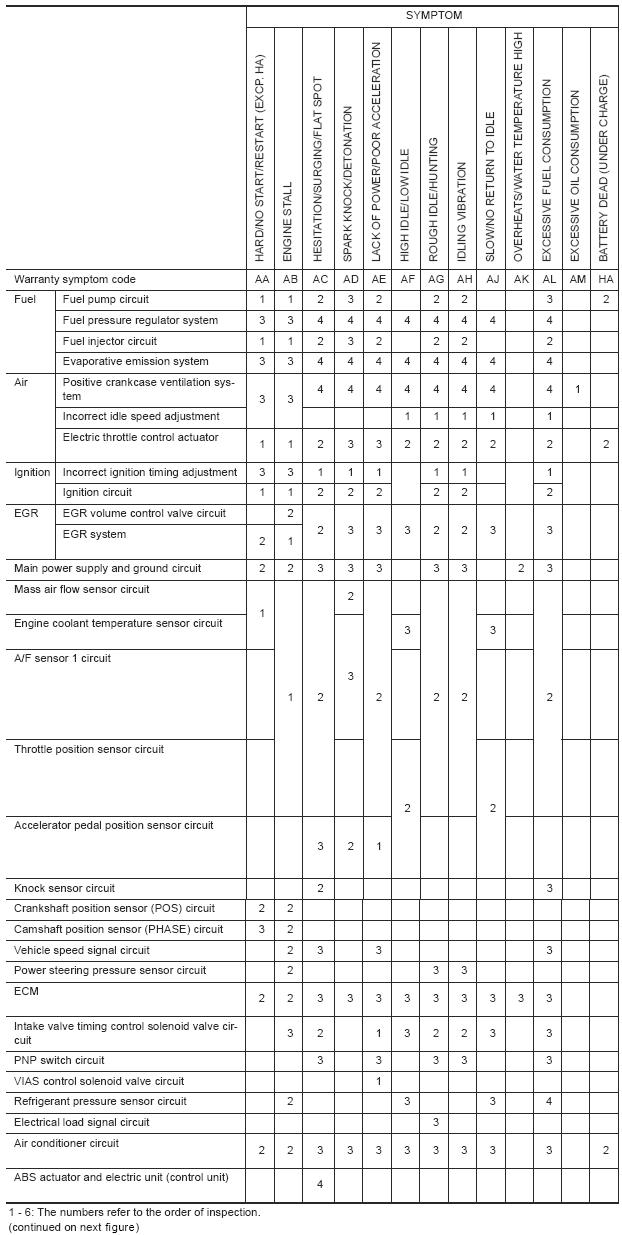

Fig 1: Basic Engine Control System - Symptom Matrix Chart
G04905135Courtesy of NISSAN MOTOR CO., U.S.A.
