Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

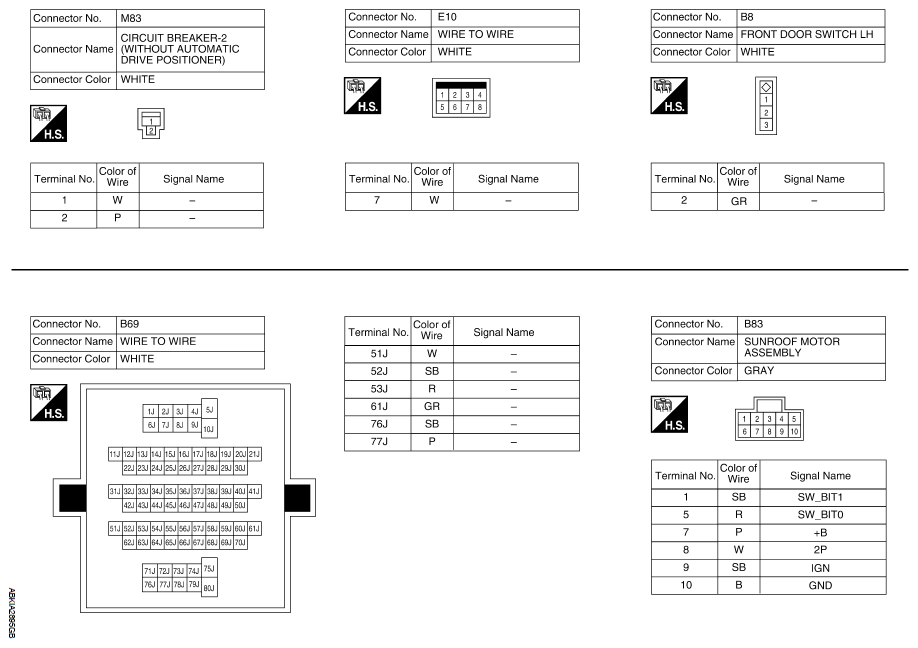

Fig 1: Identifying Sunroof Connectors (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

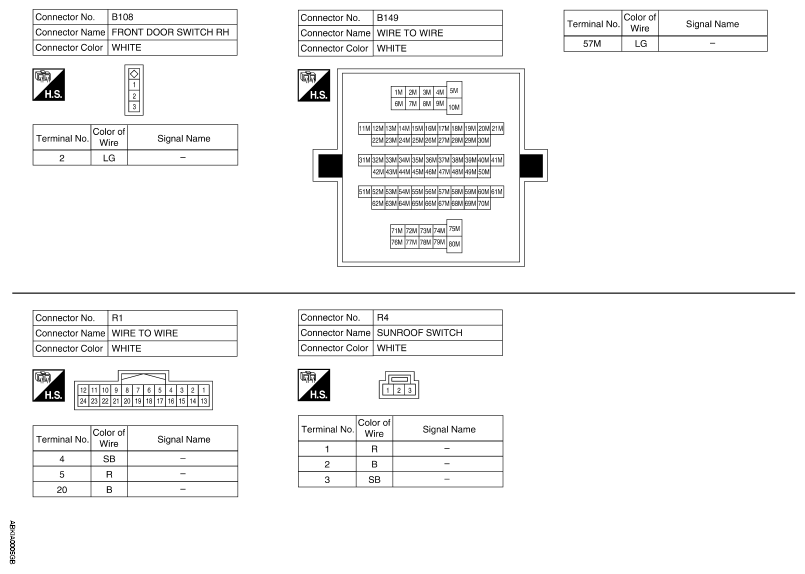

Fig 2: Identifying Sunroof Connectors (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

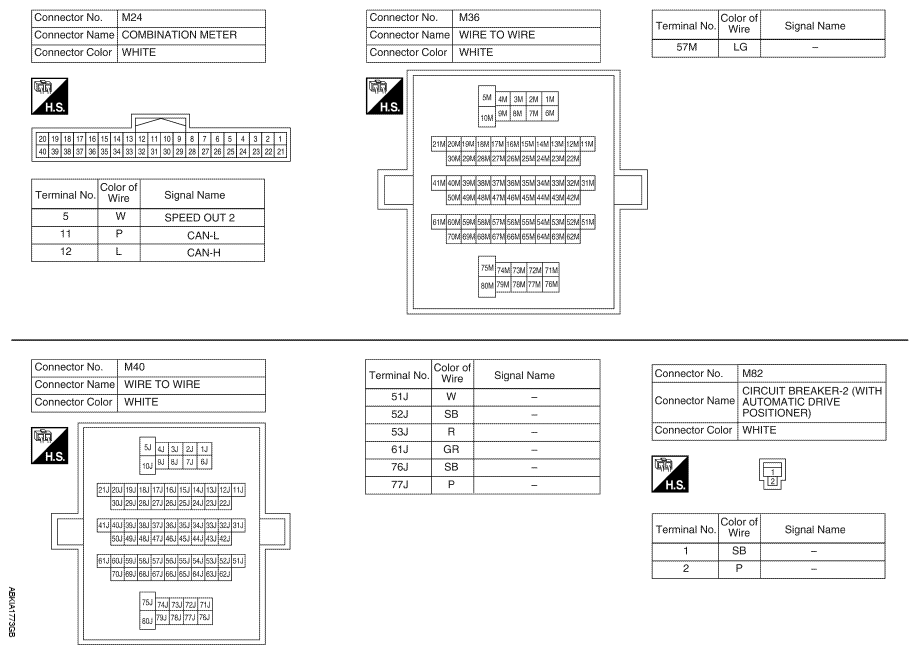

Fig 3: Identifying Sunroof Connectors (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

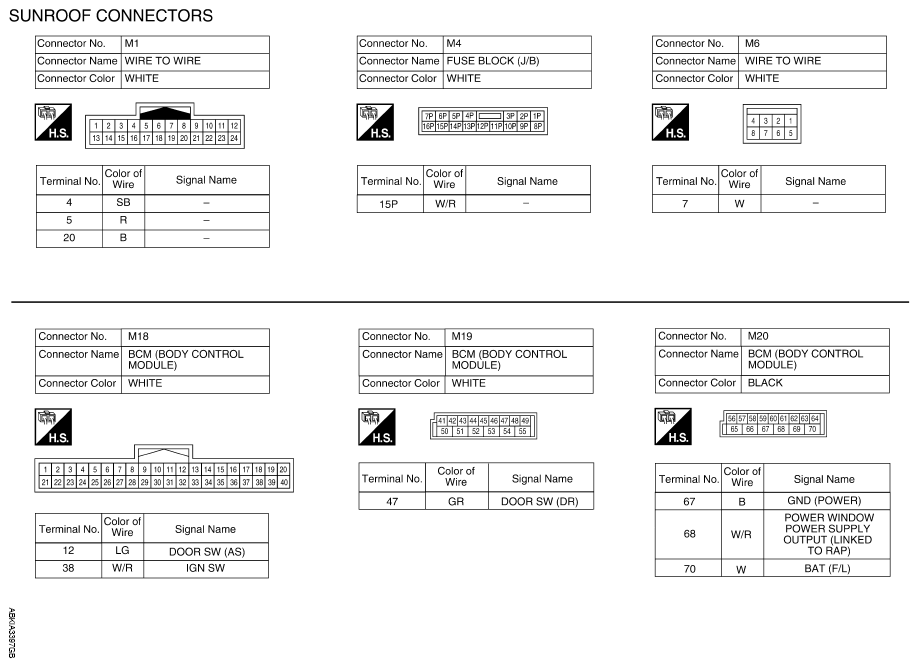

Fig 4: Identifying Sunroof Connectors (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
