Removal and Installation: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

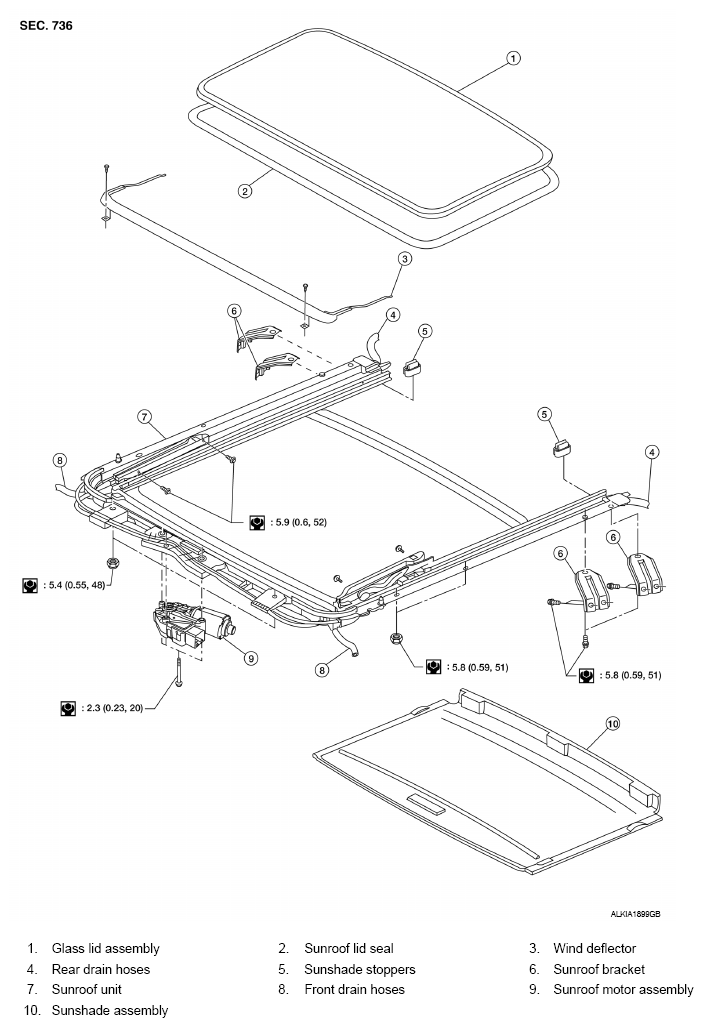

Fig 1: Sunroof System Replacement Components With Torque Specifications

G08168550

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Always work with a helper.
Handle glass lid assembly with care so not to cause damage.
Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor assembly.
After installing the sunroof and glass lid assembly, check gap adjustment to ensure there is no malfunction.

NOTE:

After any adjustment, check sunroof operation and glass lid assembly alignment.
For easier installation, mark each point before removal.
