Base Audio System: Wiring Diagram

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

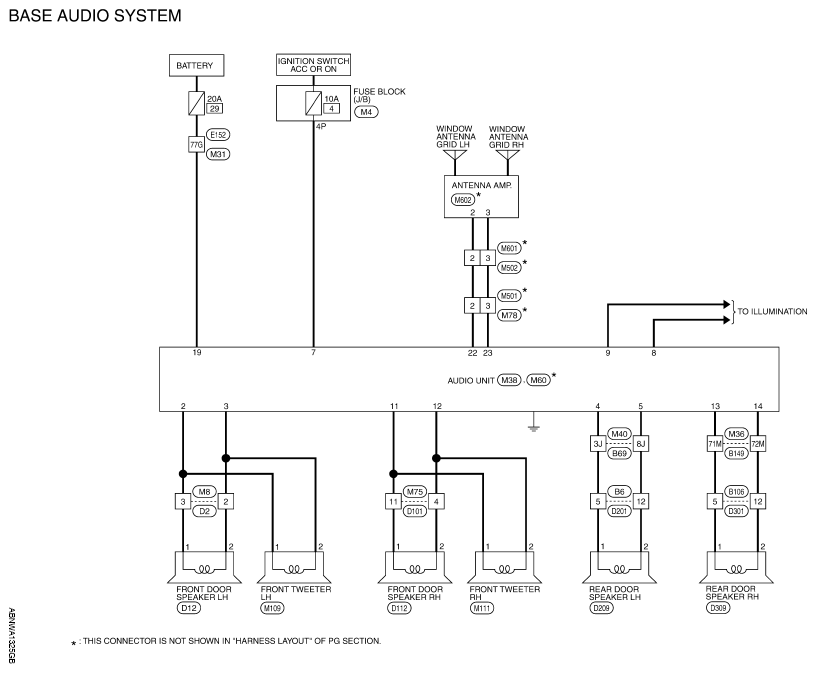

Fig 1: Base Audio System Wiring Diagram
G08169392Courtesy of NISSAN NORTH AMERICA, INC.
