Descriptions for Clips

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Replace any clips which are damaged during removal or installation  .

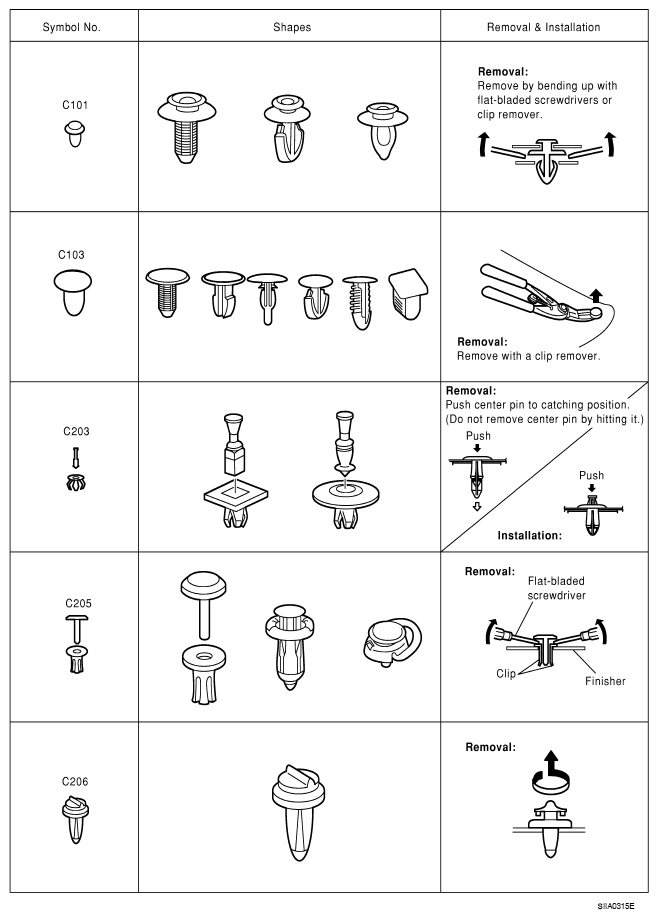

Fig 1: Clips And Fasteners Removal And Installation Chart (1 Of 4)
G08168563Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Clips And Fasteners Removal And Installation Chart (2 Of 4)
G04877761Courtesy of NISSAN NORTH AMERICA, INC.

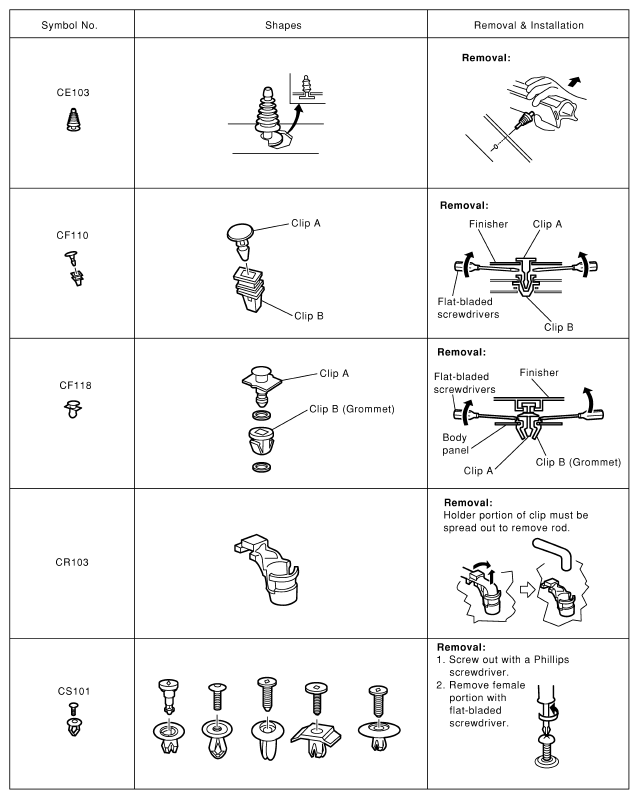

Fig 3: Clips And Fasteners Removal And Installation Chart (3 Of 4)
G04877762Courtesy of NISSAN NORTH AMERICA, INC.

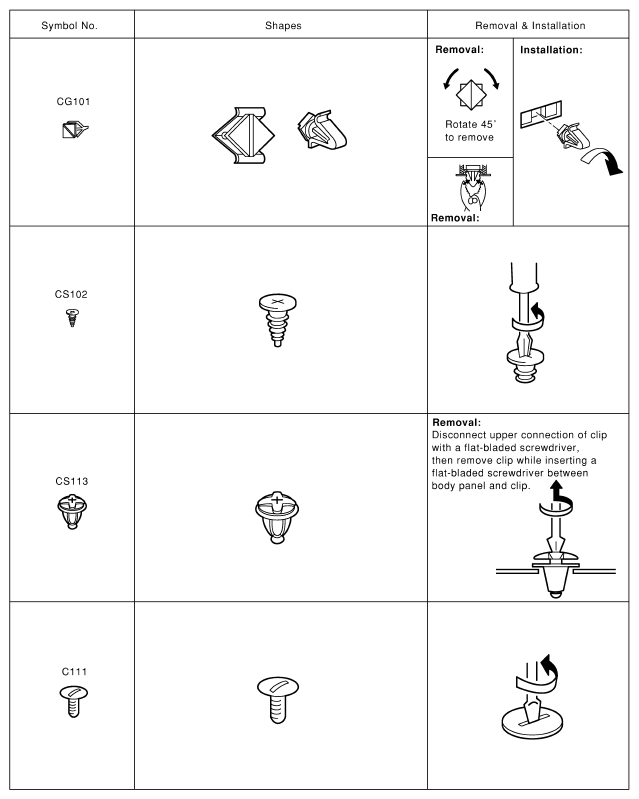

Fig 4: Clips And Fasteners Removal And Installation Chart (4 Of 4)
G06986957Courtesy of NISSAN NORTH AMERICA, INC.
