Wiring Diagram - With Intelligent Key System

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

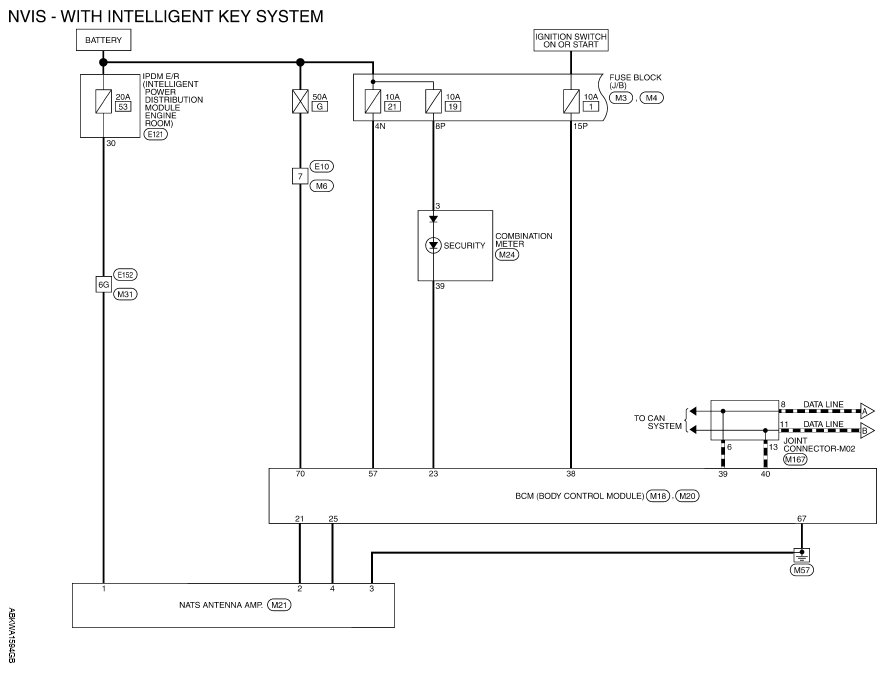

Fig 1: NVIS (With Intelligent Key System) Wiring Diagram (1 Of 2)
G08168322Courtesy of NISSAN NORTH AMERICA, INC.

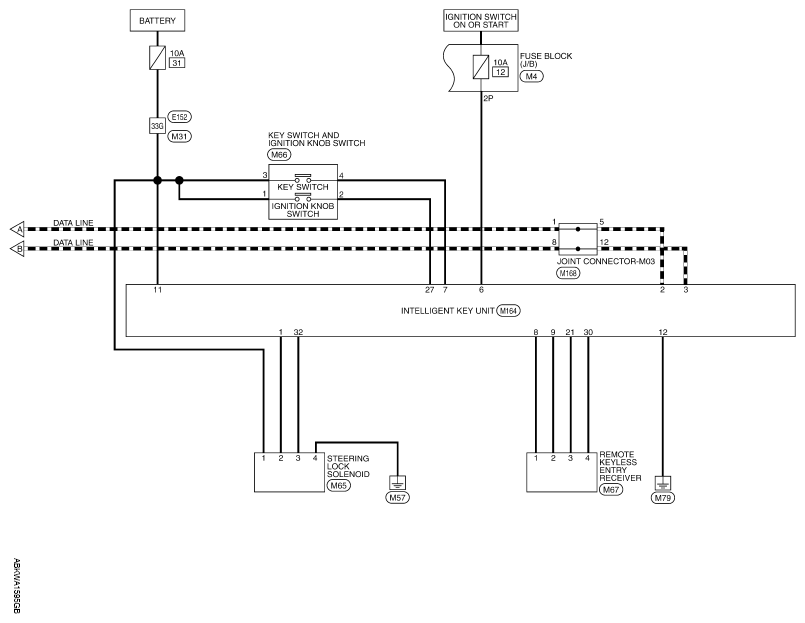

Fig 2: NVIS (With Intelligent Key System) Wiring Diagram (2 Of 2)
G08168323Courtesy of NISSAN NORTH AMERICA, INC.
