Operation Flow

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

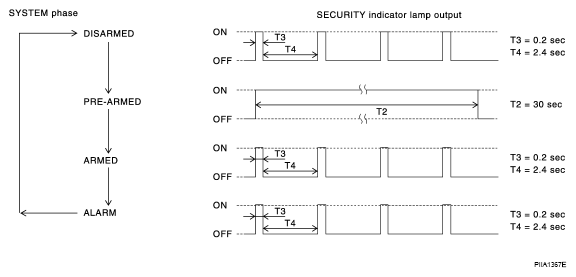

Fig 1: Security Indicator Lamp Output Signal Chart
G05876347Courtesy of NISSAN MOTOR CO., U.S.A.
