Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

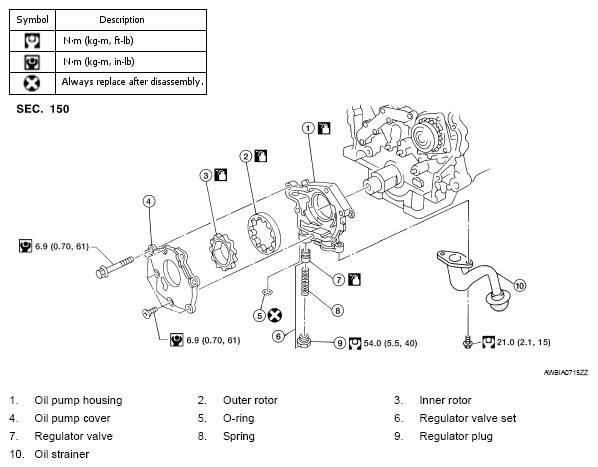

Fig 1: Disassemble View Of Oil Pump With Torque Specification
G05877056Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before assembly, apply new engine oil to the parts as shown.
