Exploded View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

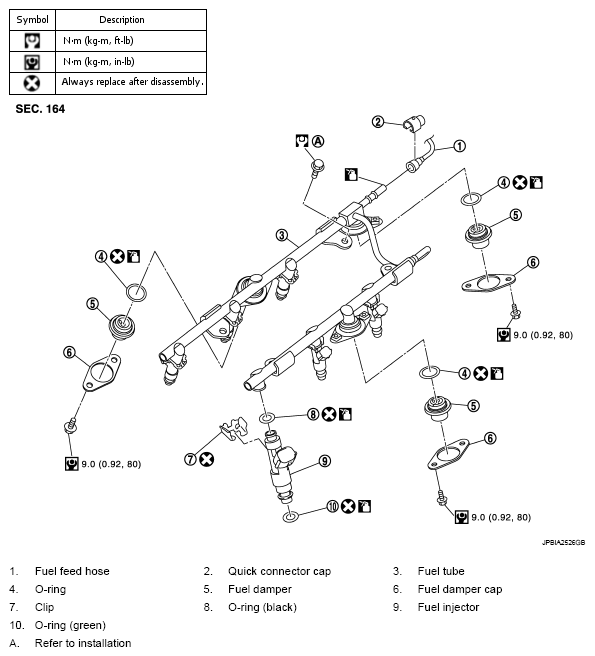

Fig 1: Fuel Injector And Fuel Tube Replacement Components With Torque Specifications
G05877814Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Never remove or disassemble parts unless instructed.
