Seat Memory Indicator Lamp Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "MEMORY SW INDCTR" in ACTIVE TEST, check operation.

    TEST ITEM DESCRIPTION

    Test item Description
    MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    OK: Seat memory switch indicator lamp circuit is OK.

    NG: GO TO 2.

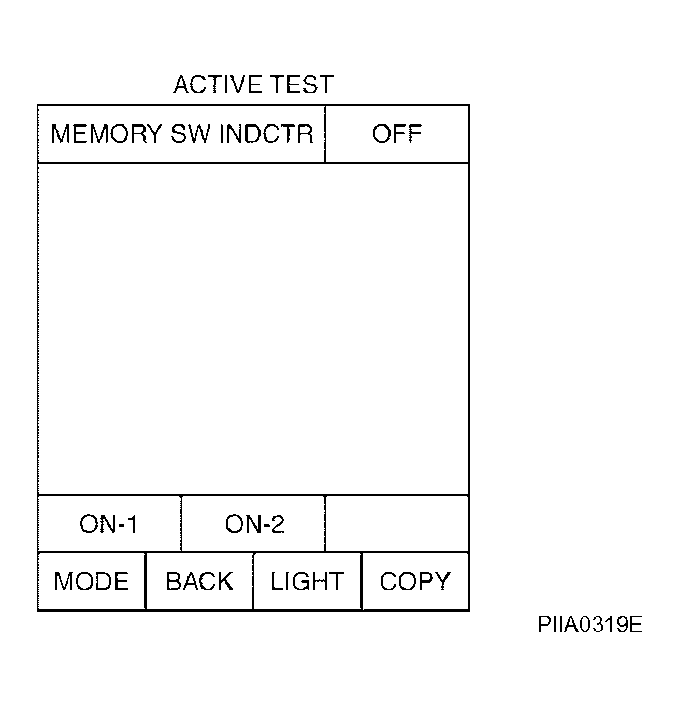

    Fig 1: CONSULT-II Screen Display - MEMORY SW INDCTR In ACTIVE TEST
    G04200008Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch.
    3. Check voltage between seat memory switch connector D5 terminal 5 and ground.

      5 - Ground: Battery voltage

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness.

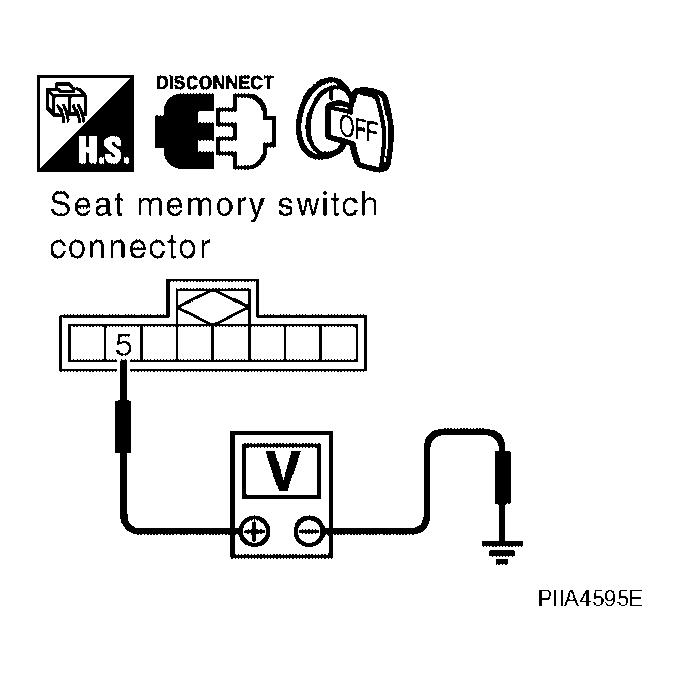

    Fig 2: Identifying Voltage Between Seat Memory Switch Connector D5 Terminal 5 And Ground
    G04200009Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK SEAT MEMORY INDICATOR CIRCUIT HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit.
    2. Check continuity between automatic drive positioner control unit connector M41 terminals 12, 13 and seat memory switch connector D5 terminals 6, 7.

      12 - 6: Continuity should exist.

      13 - 7: Continuity should exist.

    3. Check continuity between automatic drive positioner control unit connector M41 terminals 12, 13 and ground.

      12 - Ground: Continuity should not exist.

      13 - Ground: Continuity should not exist.

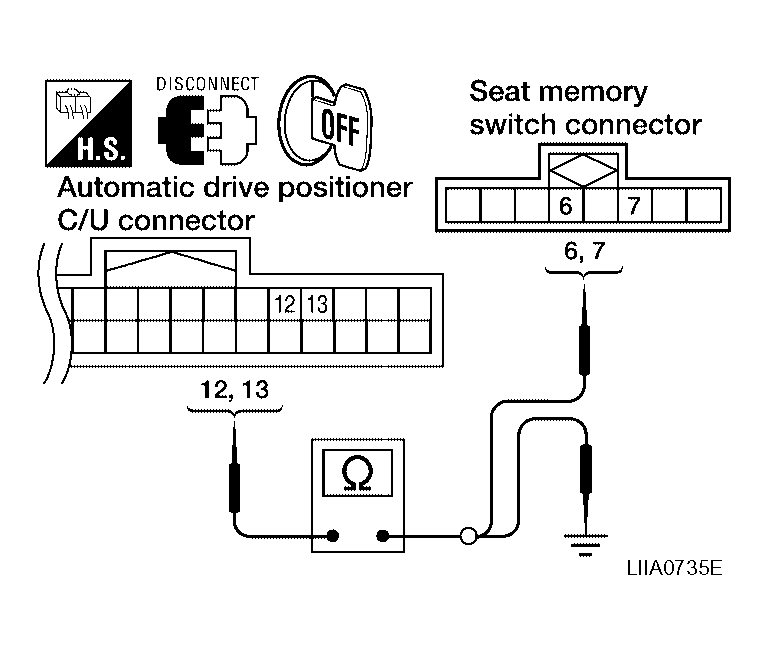

      Fig 3: Identifying Continuity Between Connector M41 Terminals 12, 13 And Connector D5 Terminals 6, 7
      G04200010Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Repair or replace harness.

  4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL

    Check voltage between automatic drive positioner control unit connector M41 terminals 12, 13 and ground.

    12 - Ground: Battery voltage

    13 - Ground: Battery voltage

    OK or NG

    OK: Replace automatic drive positioner control unit.

    NG: Replace seat memory switch. Refer to "FRONT DOOR ".

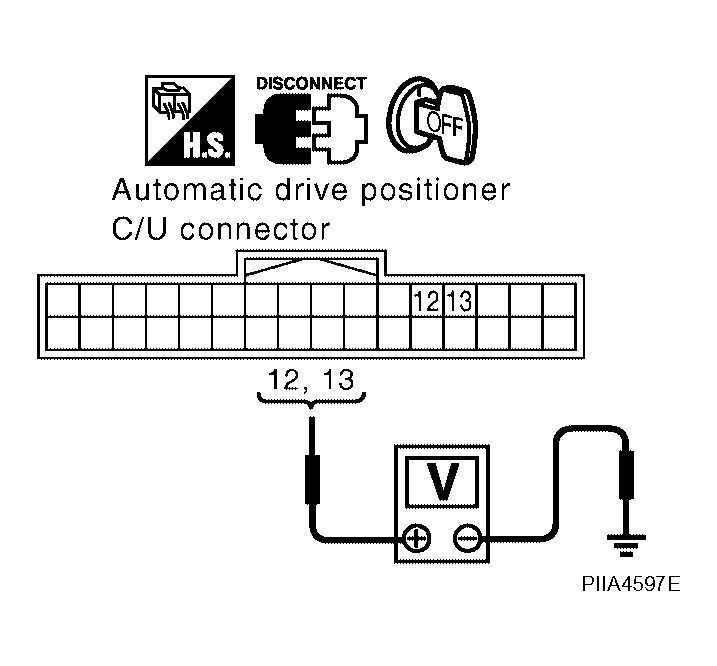

    Fig 4: Identifying Voltage Between Automatic Drive Positioner Control Unit Connector M41 Terminals 12, 13 And Ground
    G04200011Courtesy of NISSAN MOTOR CO., U.S.A.
